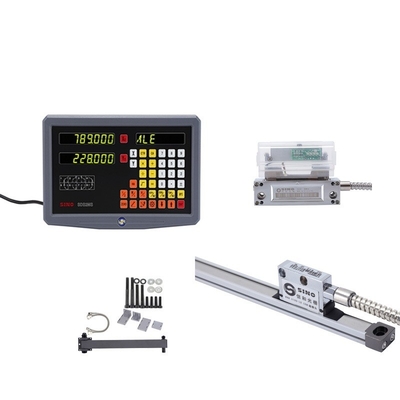

SINO SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL 2 Axis Digita Readout Test Instrument System

Brand Name:	SINO
Model Number:	SINO 2 Axis Digitak Readout
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO

Item Name:

Test Instrument System SDS 2MS

Usage:

For Milling Lathe TTL

Power Voltage Selection:

AC 50 Hz~60 Hz

Signal:

TTL Square Wave

Resolution:

5µm/1µm

Storage Temperature:

0℃~70℃

Power Consumption:

25VA

Sealing Class:

IP53

Material:

Aluminum + Glass

Interface:

RS232

Scale Model:

KA-300 Encoder

Additional:

In Inch Display

Axis:

2 Axis

Supply Ability:

3000 sets per month

Highlight:

2MS DRO Kits Glass Linear Scale

Milling Lathe Glass Linear Scale

2 Axis Glass Linear Scale

Product Description

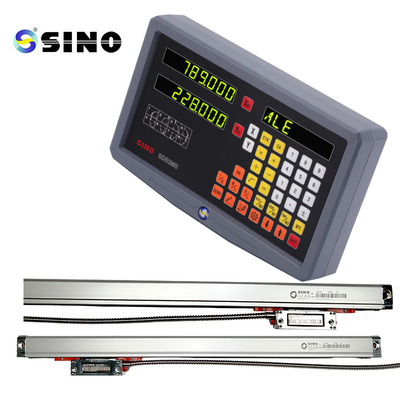

SINO 2 Axis Digital Readout Test Instrument System SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL

The ISO 9001 quality system, ISO 14001 environmental system, and OHSAS 18001 occupational health and safety system have all been authorized and audited by our organization.

Smooth R :

Arc processing is crucial to mold processing. Using a CNC machine for single workpiece placement machining may be very costly and time-consuming when the necessary shapes are straightforward and do not need a lot of arcing.

specifications:

1. Care must be used when handling the digital display box.
2. The box has to be correctly grounded.
3. Selecting the power voltage: AC 100V–240V 50Hz–60Hz
4. 25VA is the power usage.
5. Operating temperature: 0°C to 45°C
6. Temperature for storage: -30°C to 70°C
7. Relative humidity: 20±5°C, less than 90%
8. Weight: around 840 grams
9. The box must be free of corrosive gasses.

10. There are two coordinates in total.

11. Display: Using an 8-star character display device, the message window shows seven numerals with symbols.

12. Multiplication of frequency: 4X

13. TTL square wave is an acceptable input signal.

14. ≤5M Hz is the maximum permitted input signal frequency.

15. Resolution of length: 5µm, 1µm.

16. Operation keyboard: Diaphragm touch keys that are sealed

Package list:

1. A digital readout from the SDS2MS series

2. A length of electrical wire

3. An operational instruction copy

Item name	SDS 2MS Digital Readout System
Digital Readout (DRO)	SDS2MS
Power Voltage selection	AC 50 Hz~60 Hz 100V~240V
Power consumption	25VA
Working temperature	0℃~45℃
Allowable input signal	TTL square wave

Detail Information:

SINO SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL 2 Axis Digita Readout Test Instrument System 0

SINO SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL 2 Axis Digita Readout Test Instrument System 2

SINO SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL 2 Axis Digita Readout Test Instrument System 3

Caution:

To prevent electric shock from fire, the machine shall not spray moisture or coolant directly.

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL 2 Axis Digita Readout Test Instrument System 4

Dear users:

We appreciate you buying and using our items! Please read the following guidelines to ensure that our services increase your satisfaction after the purchase:

Products will be supplied with "Three Guarantees" and a one-year warranty (from date of sale) that includes free repair and a 15-day limited replacement.

Replacement accessories must be complete: A handful of the services listed below are not free: 1. beyond a one-year guarantee; 2. unusual damage brought on by noncompliance with usage, maintenance, and storage guidelines; 3. damage from an unauthorized repairer; 4. without a legitimate invoice (unless the product can be verified during the warranty period); 5. damage from an irresistible force
