SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems With Linear Encoder

Brand Name:	SINO
Model Number:	SDS2MS, KA-300, KA-500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SINO TTL RoHS 2 Axis Digital Readout SDS2MS

Usage:

2 Axes Lathe Process Propose

System:

2 Axes LED DRO SDS2MS

Scale Model:

KA-300 With KA-500

Signal:

TTL And RS422 Can Be Optioned

Resolution:

0.005 / 0.001 / 0.0005mm Can Be Optioned

DRO Mounting:

Electric Box By 90 Degree Rack

Meas. Travel:

X Axis: 270~520mm / Z Axis: 770~1020mm

Display:

2 Axes LED

Voltage:

100V - 240V / KA Series: 5V

Supply Ability:

3000 sets per month

Highlight:

2 Axis DRO Measuring Systems

Multifunctional DRO Measuring Systems

Lathe DRO Measuring Systems

Product Description

SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems with linear encoder

Company Profile:Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.

This digital readout system is designed specifically for the positioning of a 2-axis lathe machine.

The SDS2MS DRO should be mounted on the lathe's electrical box using a 90-degree rack.

The KA-300 linear grating scale is intended for the Z-axis, while the KA-500 linear grating scale is intended for the X-axis.

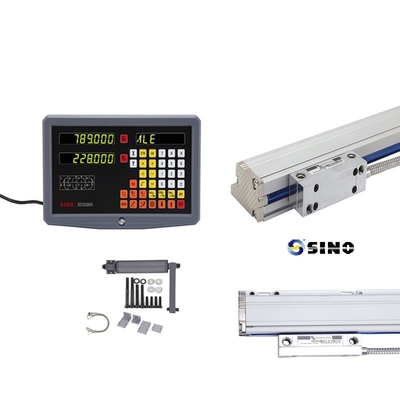

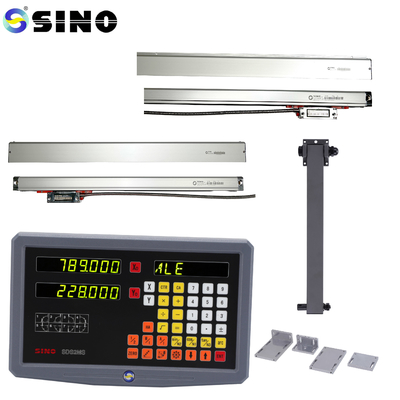

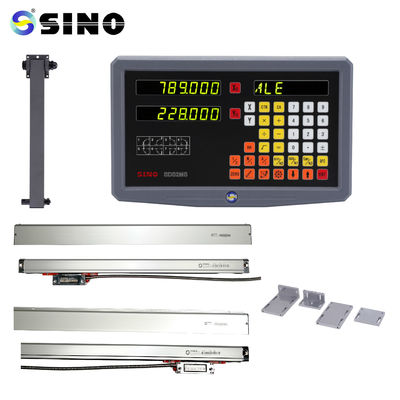

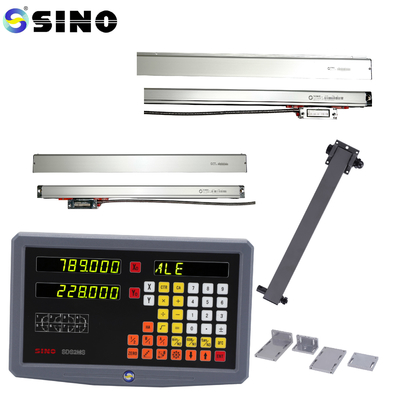

Package list:

Item name	2 axis economy LED lathe digital readout set
Digital Readout (DRO)	SDS2MS
Linear scale for axis Z	KA-300 720-1020mm
Linear scale for axis X	KA-500 270-520mm
Rack for DRO	Rack for lathe
Protection cover for Z scale	Type D
Protection cover for X scale	Type H
Bracket for scales	T-bracket (1set) / KA-500 bracket (1pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Radius / Diameter Conversion
Tool Diameter Compensation

Detail Information:

SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems With Linear Encoder 0

SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems With Linear Encoder 1

SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems With Linear Encoder 3

Pin Description:

SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems With Linear Encoder 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems With Linear Encoder 5

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:

SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems With Linear Encoder 8
