SINO Digital Readout SDS 2-3MS 2 Axes Metal LCD Full For Milling Machine DRO 0.005mm Resolution Practical With Linear Encoder

SINO Digital Readout 2 Axes Metal LCD Full Touch Screen for Milling Machine DRO 0.005mm Resolution Practical with linear encoder

Company Introduction:

Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.

Description:

Enhance the precision of your milling machine with the LCD Full Touch Screen DRO (Digital Readout) system. Offering an impressive 0.005mm resolution, this system is specifically designed for metal milling applications, providing accurate measurements and reliable positioning. The user-friendly touch screen interface ensures easy operation, making it a practical solution for professional machinists seeking higher precision and efficiency.

Key Features:

High-Resolution Display: With a 0.005mm resolution, the DRO system ensures precise and repeatable measurements, making it ideal for intricate milling tasks.
LCD Full Touch Screen: The intuitive full touch screen allows for effortless navigation and quick adjustments, improving user experience and operational speed.
Practical for Metal Milling: Designed to meet the demands of metal milling applications, the system offers dependable performance in industrial settings.
Enhanced Accuracy: Provides reliable readings for precise positioning during milling, helping to minimize errors and maximize machining efficiency.
Durable Construction: Built with a metal casing, the system is designed to withstand the rigors of heavy-duty use, offering longevity and durability.

Product Benefits:

Improved measurement accuracy for superior milling outcomes
Easy-to-use touch screen interface for smoother operation
Built for metal milling applications, ensuring reliable performance in tough environments
Highly durable, making it ideal for industrial usage and long-term reliability

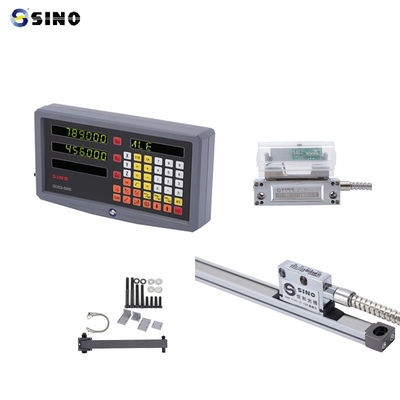

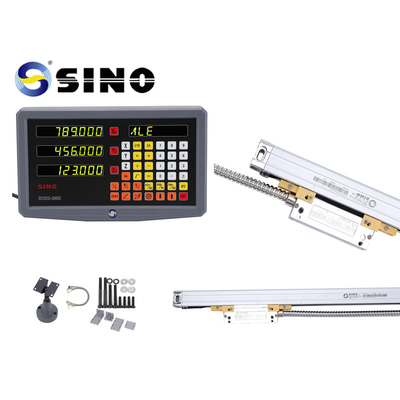

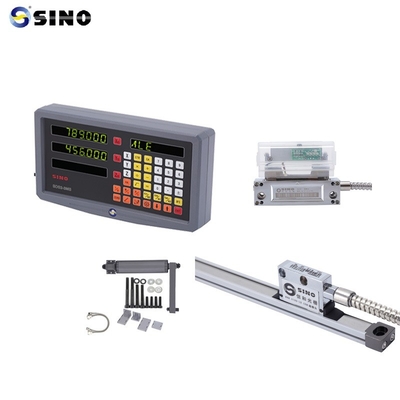

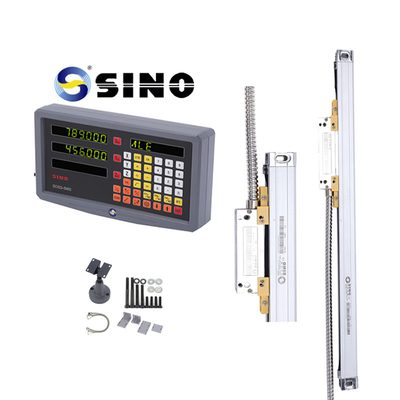

Two common linear rulers, the KA-600 or the KA-300, and one LCD display readout (SDS200).

Linear ruler KA-600: 1000 - 3000mm

Linear ruler KA-300: 70 - 1020mm

Accuracy and Precision: DROs are designed to provide accurate and precise measurements. The resolution of the system determines the smallest increment it can measure, and higher-resolution systems offer finer measurement capabilities.

Display Units: DROs feature digital display units that show the measured values. These units can have multiple screens to display various measurements simultaneously or toggle between different axes or functions. The displays may use LED, LCD, or other technologies.

Package list:

Functions for milling machine:

1. Simple "R" with a midsplit.
2. Line Hole Positioning using an Angle
3. Circle PCD Process for Equally Dividing Bevels
4. Progressive Machining on the inner chamber of a rectangle

Detail Information:

Pin Description:

All linear scales were tested before delivery. Here is a sample of a scale's test report.
