SDS6-3VF RS232-C Output LED Lathe Machine DRO Digital Readout Kit Durable With Linear Encoder

Brand Name:	SINO
Model Number:	SDS6-3VF, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

SDS6-3VF

Usage:

3 Axis Machine Positioning With RS232-C

System:

3 Axis Digital Readout System SDS6-3VF

Scale Model:

KA-300 Linear Scale

Signal:

TTL / EIA-422-A

Resolution:

KA-300 Linear Scale: 5 Or 1 Micron

Voltage:

Digital Readout System: AC 100V-240V

Meas. Travel:

KA-300 Linear Scale: 70-1020mm

Supply Ability:

3000 sets per month

Highlight:

RS232 output lathe machine DRO

Durable digital readout kit with encoder

LED lathe machine DRO kit

Product Description

SINO SDS6-3VF Digital Readout System for 3-Axis Metal Milling Machine, RS232-C Output, with Three Linear Scales.

This digital readout system is specifically designed to meet the requirements of a 3-axis milling machine and allows for connection to a PC or other systems. It includes a 3-axis LED display digital readout SDS6-3VF, along with three standard KA-300 linear scales.

Package list:

Item name	3 axis lathe machne LED RS232-C output digital readout system
Digital Readout (DRO)	SDS6-3VF
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Linear scale for axis Z	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Protection cover for Z scale	Type D
Bracket for scales	T-bracket (2 sets)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit
Smooth “R”
Simple “R”
Oblique Line Hole Positioning
PCD Circle Equally Dividing
Bevel Processing
Rectangular Inner Chamber Progressive Machining

Detail Information:

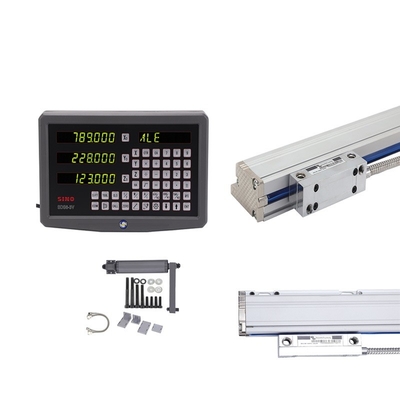

SDS6-3VF RS232-C Output LED Lathe Machine DRO Digital Readout Kit Durable With Linear Encoder 0

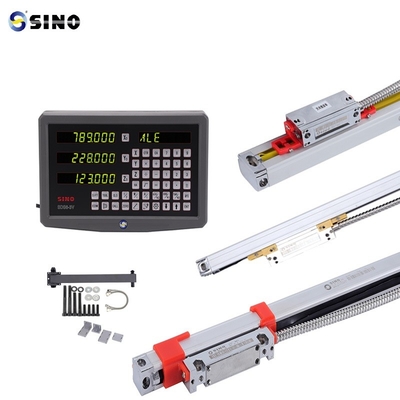

SDS6-3VF RS232-C Output LED Lathe Machine DRO Digital Readout Kit Durable With Linear Encoder 1

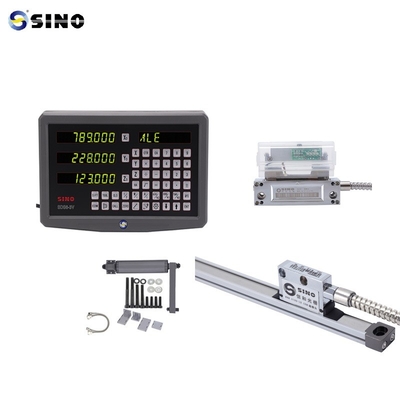

SDS6-3VF RS232-C Output LED Lathe Machine DRO Digital Readout Kit Durable With Linear Encoder 2

Pin Description:

SDS6-3VF RS232-C Output LED Lathe Machine DRO Digital Readout Kit Durable With Linear Encoder 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SDS6-3VF RS232-C Output LED Lathe Machine DRO Digital Readout Kit Durable With Linear Encoder 4
