SINO Two Axis Lathe Machine DRO Mini Size 100V-240V Multi Function

Brand Name:	SINO
Model Number:	SDS2MS, KA-300, KA-500, KA-200
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

2 Axis Economy Mini Size Lathe Machine DRO Kit

Usage:

Mini Lathe Machine Positioning

System:

2 Axis LED DRO SDS2-3VA

Scale Model:

KA-200, KA-300, KA-500,

Signal:

TTL / RS422

Resolution:

0.005mm/0.001mm

DRO Mounting:

Electric Box By Base

Meas. Travel:

70-1020mm

Display:

2 Axes LED

Voltage:

Linear Ruler: +5V, DRO: 100V - 240V

Storage Temperature:

0-60℃

Case:

Plastic

Compatible With:

Lathe Machines, Milling Machines, Grinding Machines

Scale Model:

KA-300 & KA-500 Series

Type:

Digital Readout System

Item Name:

2 Axes TFT Lathe Digital Counter System

Supply Ability:

3000 sets per month

Highlight:

two axis lathe machine DRO

mini lathe machine with DRO

multi function lathe machine DRO

Product Description

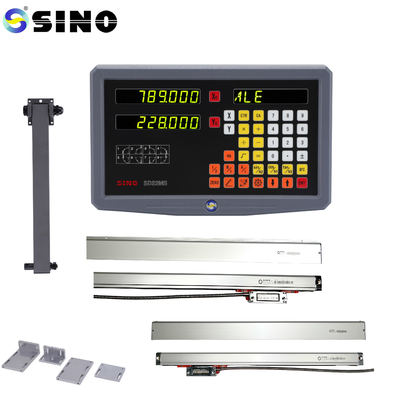

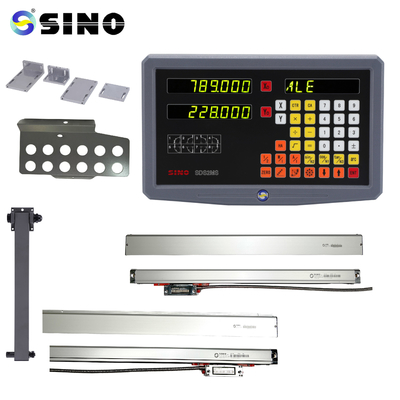

SINO 2 axis LED mini lathe machine DRO kit SDS2MS with two mini linear scales

This kit is uniquely designed for positioning two-axis micro lathe machines.
The TFT DRO SDS2MS should be mounted on the electric box using a specific base.
For compact installation spaces, the KA-500 or KA-200—two very small models—are suitable options.

Package list:

Item name	2 axis economy mini lathe machine DRO kit
Digital Readout (DRO)	SDS2MS
Linear scale for axis Z	KA-200 / KA-500 70-570mm
Linear scale for axis X	KA-200 / KA-500 70-570mm
Rack for DRO	Base for lathe
Protection cover for Z scale	Type H / Y
Protection cover for X scale	Type H / Y
Bracket for scales	T-bracket (1 set) / KA-500 bracket (1 pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Radius / Diameter Conversion
Tool Diameter Compensation
Taper Measurement
200 Tools Storage

Detail Information:

SINO Two Axis Lathe Machine DRO Mini Size 100V-240V Multi Function 0

SINO Two Axis Lathe Machine DRO Mini Size 100V-240V Multi Function 1

SINO Two Axis Lathe Machine DRO Mini Size 100V-240V Multi Function 2

SINO Two Axis Lathe Machine DRO Mini Size 100V-240V Multi Function 3

SINO Two Axis Lathe Machine DRO Mini Size 100V-240V Multi Function 4

Pin Description:

SINO Two Axis Lathe Machine DRO Mini Size 100V-240V Multi Function 5

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO Two Axis Lathe Machine DRO Mini Size 100V-240V Multi Function 6

It's a sample that KA-500 linear encoder on axis X of lathe:
