TTL Signal Digital Readout SINO SDS2-3MS 3-Axis Dro with Glass Linear Encoder Scale Set for Milling Machine

TTL Signal Digital Readout SINO SDS2-3MS 3-Axis Dro with Glass Linear Encoder Scale Set for Milling Machine ​

The SINO SDS2-3MS Lathe Milling Machine DRO Digital Readout with Three-Coordinate Numerical Display is a digital readout system designed for lathe and milling machines. It provides accurate, real-time measurement feedback, enabling operators to precisely monitor and control the machining process.

Features:

SDS3MS Display:

The SDS3MS digital readout system boasts a clear, user-friendly interface designed for seamless monitoring of machine measurements. With function buttons and a keypad, it ensures effortless operation.

Multiple Axes Capability:

The SDS2-3MS DRO system supports multiple axes, enabling real-time measurement feedback and control for various machine movements. This feature allows for precise positioning and accurate machining across multiple axes simultaneously.

Compatibility with Lathes and Milling Machines:

Ideal for both lathe and milling machines, this DRO system is highly versatile and integrates smoothly with different types of equipment. It can be easily incorporated into machine control systems for streamlined operation.

High Precision:

With high-accuracy measurement readings, the digital readout system ensures precise control over machine movements, enabling machinists to meet tight tolerances in their operations. This level of accuracy is crucial for achieving optimal machining results.

Incremental and Absolute Measurement Modes:

The SDS2-3MS DRO system offers both incremental and absolute measurement modes, providing flexibility for different machining needs. Operators can easily switch between modes as required, tailoring the system to specific operational demands.

Functionality:

The SDS2-3MS SINO Lathe Milling Machine DRO Digital Readout system provides precise monitoring and control of machine movements during lathe and milling operations. It offers real-time measurement feedback, enabling operators to make adjustments and corrections for achieving accurate machining results.

This DRO system is widely used in machining operations requiring precise measurements and control, including turning, milling, drilling, and boring. It’s suitable for industries like metalworking, automotive, woodworking, and aerospace.

Lathe Operations: Perfect for tasks like facing, turning, tapering, threading, and grooving. It ensures accurate measurement and control of tool movements, resulting in precise machining outcomes.
Milling Operations: Ideal for milling tasks such as contouring, slotting, drilling, and profiling, offering accurate measurement and control of cutter movements for consistent and precise milling results.

SINO SDS3MS digital readout parameters

1. Voltage Range: AC 85V to 250V, 50Hz to 60Hz
2. Power Consumption: 15W / 25VA
3. Coordinate Options: Single axis (A), two axes (XY), three axes (XYZ)
4. Display: 7-segment LED display for signed numeric data; 8 meters display symbols
5. Weight: 2 kg
6. Input Signals: TTL, EIA-422, open collector output signal; compatible with programmable controllers
7. Input Signal Frequency: > 100 kHz
8. Resolution Options: 10 microns, 5 microns, 2 microns, 1 micron, 0.5 microns

Basic Functions

Unit Conversion: The system allows easy conversion between millimeters and inches for different measurements.

Absolute/Relative Transformation: Supports seamless transformation between absolute and relative coordinate systems.

Mid-Split Function: A smooth "R" function to divide the perimeter of a circle.

Workpiece Zero Points Storage: It can save up to 200 workpiece zero points for greater convenience in recurring tasks.

Hole Division along an Oblique Line: Enables precise division of holes along an inclined path.

Mathematical Calculation Tool: Offers diameter compensation and other mathematical functions to enhance machining accuracy.

Bevel Process Zero Location Autorest: Ensures automatic restoration of zero points during bevel processing.

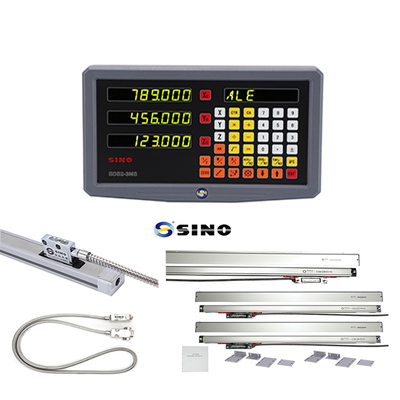

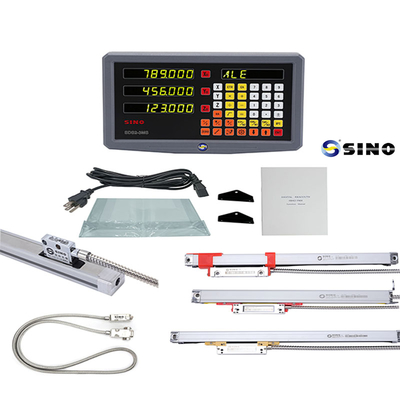

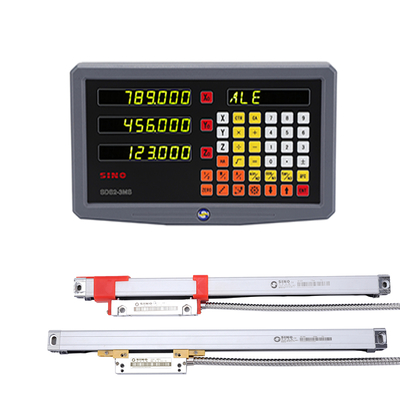

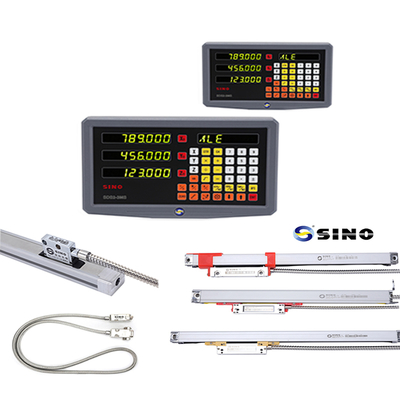

Product image /photos:

The rack in the picture is optioned, not standard product.
