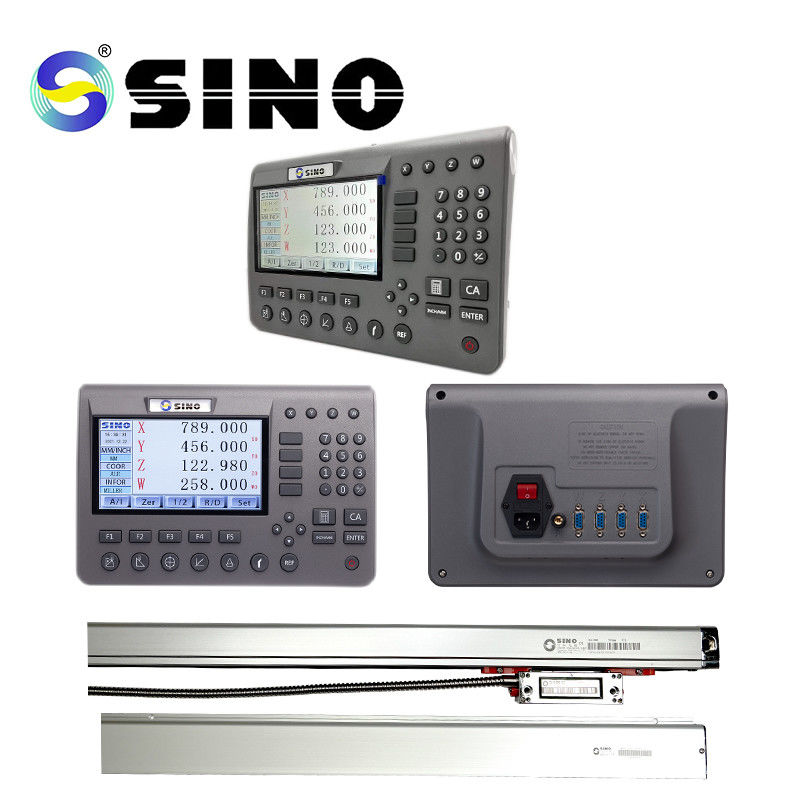

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling

Brand Name:	SINO
Model Number:	SDS200s, KA-600, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Document:

SINO SDS200 Instruction man...EN.pdf

Item Name:

3 Axis LCD Touch Screen Digital Readout

Usage:

Milling Machine Boring Machine

System:

Super Mini Lathe Boring Machine Readout SDS200s

Scale Model:

Optical Linear Rulers: KA-600, KA-300, KA-500

Signal:

Linear Scale Dro System: TTL / RS422

Resolution:

Linear Rulers: 0.005mm/0.001mm

Voltage:

Readout Power: AC 100V-240V

Meas. Travel:

Linear Rulers:1000-3000mm, 70-1020mm

Color:

Grey

Supply Ability:

3000 sets per month

Highlight:

3 axis digital readout for lathe

LCD touch screen digital readout

millilling machine digital readout kit

Product Description

SINO SDS200S LCD Touch Screen Digital Readout Precision Kit For Lathe Grinder Millilling

A multifunctional three axis digital readout is the DRO SDS200S. By altering the system parameters, it can adapt to the various machining requirements. It contains numerous graphical machining features, including the ability to calculate arcs, drill holes with uniform spacing around the circumference, drill holes perpendicular to a line, process angular surfaces, calculate angles, measure taper, and use digital filters. These features make the graphics function easier to use.

Package list:

Item name	3 axis mini size metal LCD milling machine Readout kit
Digital Readout (DRO)	SDS200
Linear scale for axis X	1000-3000mm
Linear scale for axis Y	70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type M
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 or 2 sets, depend on the size)
Others	Cable / Screws / Manual

Advantages

-Support for five languages: Chinese, German, French, English, and Spanish

-Touch Screen, easy to use

Simple, user-friendly system

-Large LCD screen that clearly shows

Specifications of the SINO SDS200S linear scale encoder and digital readout systems

A high-performance universal display console with capabilities for milling, turning, and grinding is available with the SDS200.

This four-axis variant supports a maximum of four connected linear encoders. Additional connectors can be used to combine axes or change the input to fit the needs of equipment made by different manufacturers. Please refer to the guide below for encoder compatibility.

sturdy die cast housing and a front panel membrane with tactile switches.

a sizable, simple-to-read LCD display.

Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

Detail Information:

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling 0

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling 1

Pin Description:

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling 2

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS200S LCD Touch Screen Digital Readout Kit For Lathe Grinder Millilling 3
