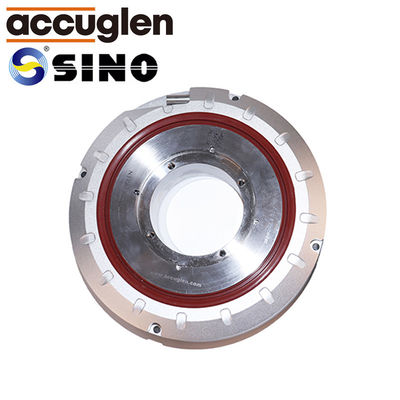

Product Details:
|
Item Name: | AD-100MA Absolute Angle Encoder | Measuring Method: | Absolute |
---|---|---|---|
Application: | Swivel Heads,Rotary Tables On Machine Tools | Applications: | Collaborative Robots,C-axes Of Lathes,gears Measuring Machines |
Hollow Shaft Diameter: | 100mm | Lines: | 65536 |
Protection Class: | IP54 | Theory: | Optical |
Position Per Revolution: | 536870912(29 Bit) | ||
High Light: | 29bits PPR Absolute Encoders,100mm Hollow Shaft Absolute Encoders |
ltem | Hollow Shaft Absolute Encoders |
Brand | ACCUGLEN/SINO |
Model | AD-100MA |
Measuring methods | Absolute |
Hollow shaft diameters | 100mm |
Applications | Rotary tables on machine tools Swivel heads on machine tools C-axes of lathes Measuring machines for gears High-precision industrial robotic arms/collaborative robots Telescopes |
Advantages |
High accuracy Simple mounting |
AD-100MA Absolute Angular Encoders | ||||
Model | AD-20MA | AD-35MA | AD-60MA | AD-100MA |
Hollow shaft diameters(mm) | 20 | 35 |
60 |
100 |
Lines | 16384 | 32768 | 65536 | |
Position per revolution |
134217728(27 bit) | 268435456(28 bit) | 536870912(29 bit) | |
Allow rotating speed |
≤1800 | ≤900 | ≤400 | |
system Accuracy | A(±1"~±3").B(±3"~±5").C(±5"~±8") | |||
lnterfaces | BiSS C protocol |
