Product Details:
|
Item Name: | AD-80KB Optical Rotary Angle Encoder | Measuring Method: | Incremental |
---|---|---|---|
Application: | Swivel Heads,Rotary Tables,collaborative Robots | Hollow Shaft Diameter: | 80mm |
Protection Class: | IP54 | Lines: | 36000 |
System Accuracy: | ±5 | ||
Highlight: | Rotary Optical Angle Encoder,Optical Angle Encoder 36000 Lines,80mm Hollow Shaft Optical Angle Encoder |

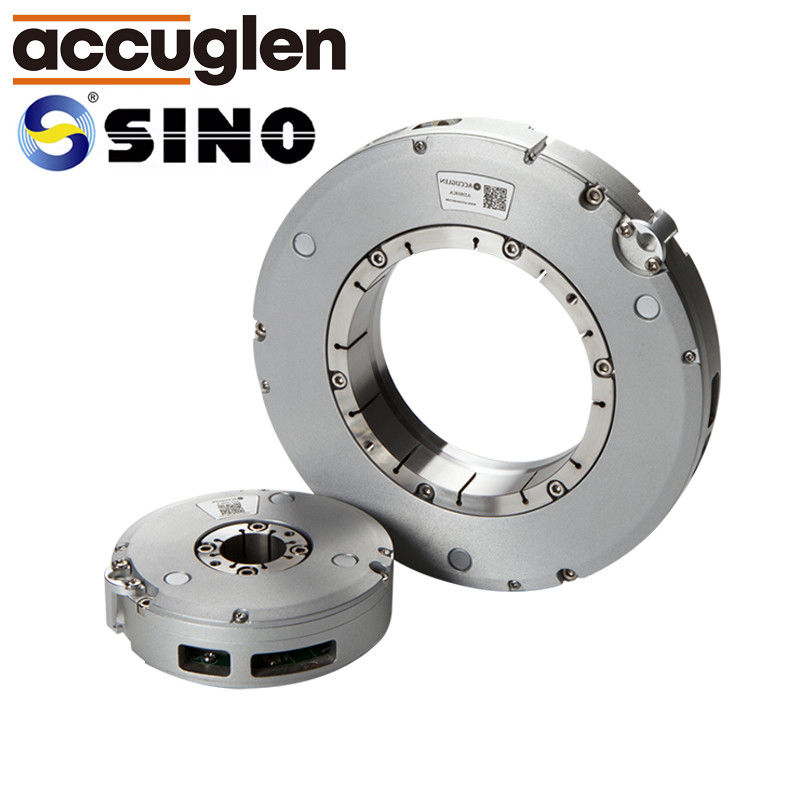

Model: AD-80KB
System Accuracy:±5"
Hollow shaft diameters:80mm
Applications:
Incremental Rotary Angle Encoders | ||||
Model | AD-20KB | AD-35KB | AD-55KB | AD-80KB |
Hollow through shaft diameters |
20 | 35 | 55 | 80 |
Lines | 9000,18000 | 18000 | 36000 | |
Measuring step (EIA-422A) |
0.72" | 0.36" | 0.18",0.36" | |
Allow rotating speed(rpm) |
≤1300 | ≤600 | ||
Reference point | Single reference(1)/ multiple reference(20) | single reference(1)/ multiple reference(36) | ||
system Accuracy | A(±5"~±8").B(±8"~±10").C(±10"~±15") | |||
output signal | -~1 Vpp orEIA-422A |
