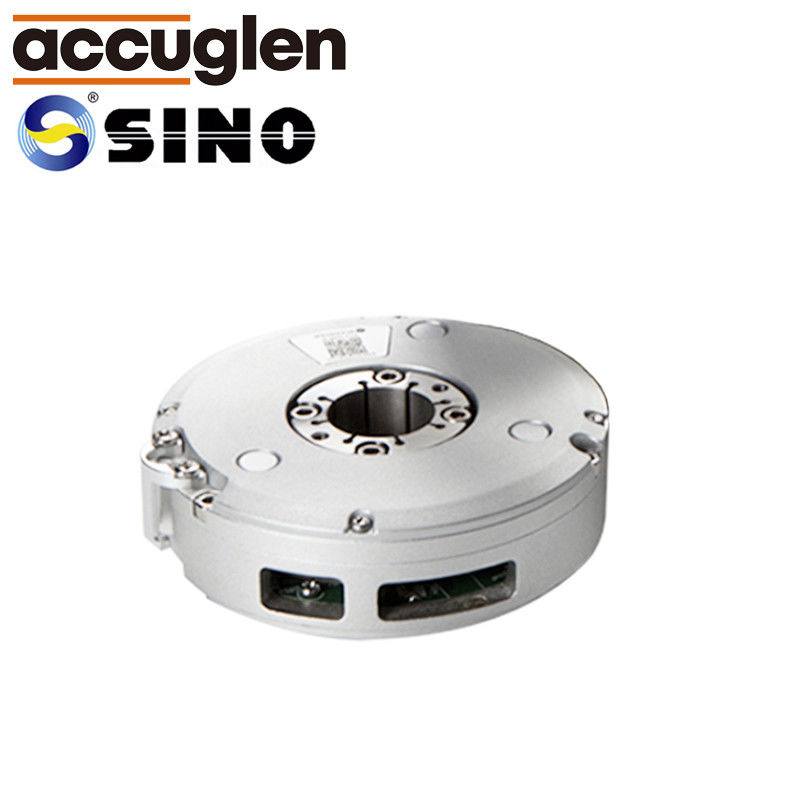

25bits Hollow Shaft 20mm Rotary Angle Encoder Accuracy ±5 Absolute Encoders

Brand Name:	SINO
Model Number:	AD-20KA
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

AD-20KA Absolute Angle Encoder

Measuring Method:

Absolute

Application:

Swivel Heads,Rotary Tables,collaborative Robots

Hollow Shaft Diameter:

Protection Class:

Theory:

Optical

Position Per Revolution:

33554432(25 Bits)

System Accuracy:

Bear Type:

Bearing-less Encoders

Supply Ability:

3000 sets per month

Highlight:

20mm Rotary Angle Encoder

25bits Hollow Shaft Rotary Angle Encoder

Product Description

Accuracy ±5 Absolute Encoders 25bits Hollow Shaft 20mm Rotary Angle Encoder

Model AD series sealed angle encoder adopts the working principle of optical scanning and two types of measuring
methods:incremental and absolute.It is good choice for limited installation space,also effective-cost since the bear-less structure.Meet the standard of IP54.The exposed angle encoder adopts an exposed structure, which is characterized by compact size and low cost.The accuracy of user's shaft system is used to restore the the accuracy of angle encoders which call for strict requirements.

ltem	Hollow Shaft Rotary Angle Encoder
Brand	ACCUGLEN/SINO
Model	AD-20KA
Measuring method	Absolute
Shaft diameters	20mm
Applications	•Rotary tables •Swivel heads •High-precision industrial robotic arms
Advantages	•Compact size •low cost •Simple mounting

Exposed Absolute Angle Encoder
Model	AD-20KA	AD-35KA	AD-55KA	AD-80KA
Hollow through shaft diameters	20mm	35mm	55mm	80mm
Position per revolution	33554432(25 bit)			67108864(26 bit)
Allow rotating speed	≤7200 rpm			≤3600 rpm
system Accuracy	A(±5"~±8"").B(±8"~±10").C(±10"~±15")
Interfaces	Biss C protocol
Note: 23-bits resolution specifications can be customized, permissible speed≤29000 rpm

Detail Information:

25bits Hollow Shaft 20mm Rotary Angle Encoder Accuracy ±5 Absolute Encoders 0
