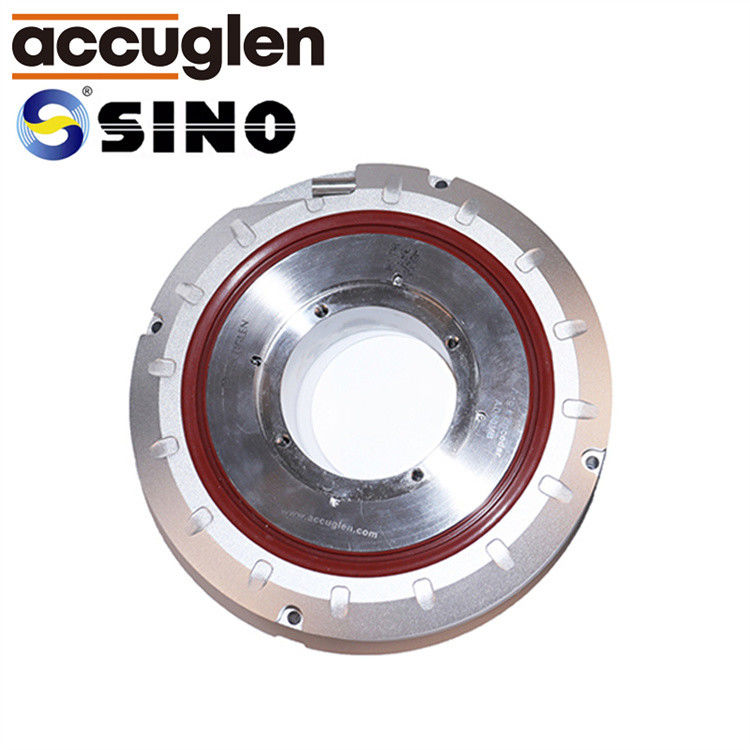

Item: Sealed Incremental Angle Encoders Model: AD-60MB-S18
Hollow Through Shaft Diameter (mm): 60 Lines: 18000
Allow Rotating Speed (rpm): ≤600 Reference Point: 36or1
Accuracy: ±8"~±10" Signal: ~1 Vpp / EIA-422A
High Light:

SINO Sealed Incremental Angle Encoders

,

Incremental Angle Encoders AD-60MB-S18

,

Milling Lathe Granding Optical Angle Encoder

SINO Sealed Incremental Angle Encoders AD-60MB-S18 ISO9001 For Milling Lathe Grinding Optical Angle Encoder



Angle encoder usually refers to an encoder with accuracy within ±5''~10'' and a line count higher than 5000. Angle encoders are used for high-precision angle measurement where accuracy is required to be within a few seconds.
The main application scope of the enclosed angle encoder: CNC turntable; C-axis of a lathe; gear measuring machine; high-precision industrial robot joints; astronomical telescopes, etc.



Precautions



Conventional safety codes and regulations must be followed in using this angle encoder. In particular, measures must be taken to ensure that the damage to the displacement sensor will not cause danger to personnel or equipment, including the installation of a safety limit switch emergency stop switch and maintenance of the operating environment allowed.



Effectiveness



This instruction manual is only applicable to the RA-A angle encoder. Refer to relevant operating instruction manuals for other series of RA-A encoders.

Safety Notice



This instruction manual is to guide technical personnel participating in installation and commissioning. Carefully read this instruction manual before installing and operating this product. Warranty will be lost due to unauthorized modification and unallowed utilization.

Nordon Corporation also provides linear scale, encoder, etc. required for other different applications, including:

  • Manual-controlled machine tool
  • Heavy-duty machine tool
  • Hydraulic equipment

specifications

ITEM AD-60MA-S28
Shaft size D1 60g7(-0.010/-0.040)
D2 80
D3 165
D4 158
D5 76
D6 66
D7 M60*1
D8 148
H1 39
H2 3
H3 32.5
H4 6.5
M 4*M4*30




SINO Sealed Incremental Angle Encoders AD-60MB-S18 For Milling Lathe Granding 0

SINO Sealed Incremental Angle Encoders AD-60MB-S18 For Milling Lathe Granding 1SINO Sealed Incremental Angle Encoders AD-60MB-S18 For Milling Lathe Granding 2SINO Sealed Incremental Angle Encoders AD-60MB-S18 For Milling Lathe Granding 3SINO Sealed Incremental Angle Encoders AD-60MB-S18 For Milling Lathe Granding 4



SINO Sealed Incremental Angle Encoders AD-60MB-S18 For Milling Lathe Granding 5





Advantages of enclosed incremental linear encoders

The sealed incremental linear encoder measures the position of the linear axis without additional mechanical transmission. All feed mechanisms are included in the position control loop through the linear encoder, and the mechanical motion error of the control loop is detected by the signal acquisition and processing system. The linear encoder reads the head and corrects it from the control, potentially eliminating several sources of error:


1. Positioning error caused by thermal expansion of the ball screw
2. Game bug
3. Motion error caused by ball screw pitch error
