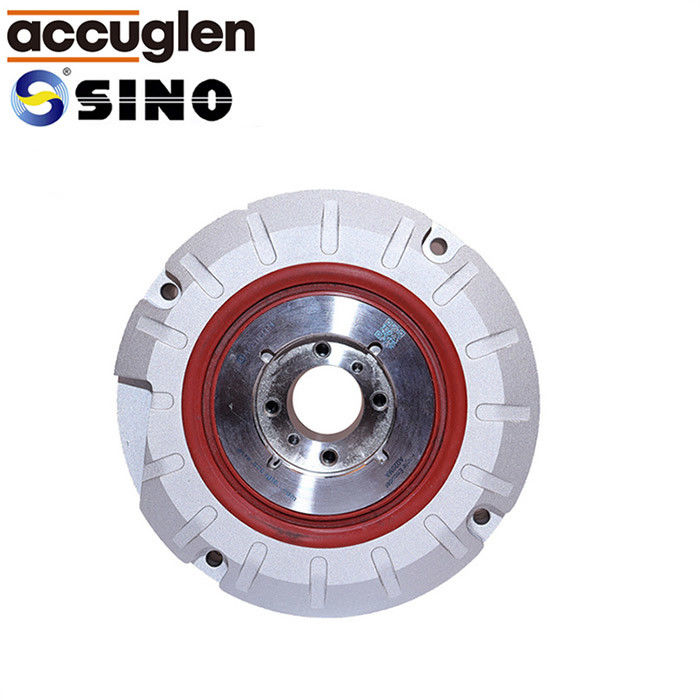

20mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine

20mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine
20mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine 20mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine

Large Image :  20mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine

Product Details:
Place of Origin: GUANGZHOU
Brand Name: SINO
Certification: CE,RoHS,ISO9001
Model Number: AD-20MA-C27
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Cartons
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per mouth

20mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine

Description
Item: Sealed Absolute Angle Encoders Model: AD-20MA-C27
Hollow Through Shaft Diameter (mm): 20 Position Values/revolution: 134217728(27 Bits)
Allow Rotating Speed (rpm): ≤1800 Reference Point: 1/36
Accuracy: ±8"~±10"
High Light:

20mm Sealed Absolute Angle Encoders

,

AD-20MA-C27 Sealed Absolute Angle Encoders

,

EDM CNC Machine Optical Angle Encoder

SINO Sealed Absolute Angle Encoders AD-20MA-C27 For Milling Lathe EDM CNC Machine

ISO9001 Sealed Absolute Angle Encoders AD-20MA-C27 Granding optical angle encode For Milling Lathe

The term angle encoder is typically used to describe encoders that have accuracy from ± 5” to± 10” and a line count above 5000. Angle encoders of choice when angle measurement in the accuracy of a few seconds is required.

Basic Sealed Angle Encoders architecture has three major components: integral bearing, hollow shaft, and Integrated stator coupling. It encases the most delicate components of the encoder, protecting them from whatever contamination may be present (IP54 protection).
AD series high-end angle encoders with integral bearing are characterized in particular by very high system accuracy in the global market. The integral bearing in the encoders eliminates any effect on measuring accuracy from the bearing of the machine components. The Integrated stator coupling expands the applicable range of axial installation to 0.5mm, which reduces the difficulty of processing and assembling related accessories.

Typical field of applications: swivel heads and rotary tables on machine tools, C-axes of lathes, telescopes, collaborative robotic arms, and many other areas.



specifications

ITEM AD-20MA-C27
Shaft size D1 20g7(-0.010/-0.040)
D2 32
D3 110
D4 100
D5 36
D6 28
D7 M20*0.5
D8 85
H1 36
H2 3
H3 30
H4 6
M 4*M4*30




20mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine 020mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine 1





20mm Sealed Absolute Angle Encoders AD-20MA-C27 For EDM CNC Machine 2
