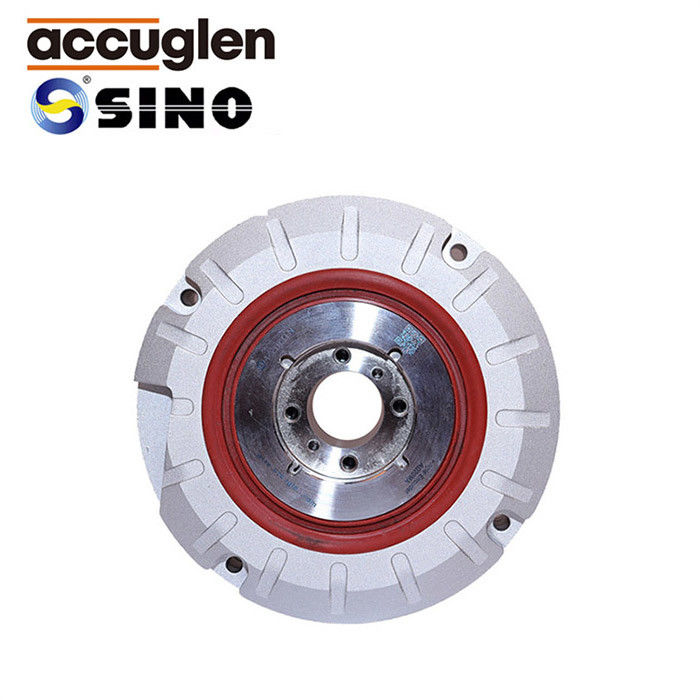

1800rpm Optical Angle Encoder AD-20MA-C27 For Milling Lathe

Name: 1800rpm Optical Angle Encoder AD-20MA-C27 For Milling Lathe
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: AD-20MA-C27
Availability: InStock

Brand Name:	SINO
Model Number:	AD-20MA-C27
MOQ:	1 SET
Price:	Negotiable
Packaging Details:	Cartons
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GUANGZHOU

Certification:

CE,RoHS,ISO9001

Item:

Sealed Absolute Angle Encoders

Model:

AD-20MA-C27

Hollow Through Shaft Diameter (mm):

Position Values/revolution:

134217728（27 Bits）

Allow Rotating Speed (rpm):

≤1800

Reference Point:

1/36

Accuracy:

±8"～±10"

Signal:

BiSS C Agreement

Supply Ability:

3000 sets per mouth

Highlight:

1800rpm Optical Angle Encoder

Optical Angle Encoder AD-20MA-C27

Milling Lathe Optical Angle Encoder

Product Description

SINO Optical Angle Encoder AD-20MA-C27 Absolute Angle Encoders Hot Selling Machine Suitable For Milling Lathe

The term angle encoder is typically used to describe encoders that have accuracy from ± 5” to± 10” and a line count above 5000. Angle encoders of choice when angle measurement in the accuracy of a few seconds is required.

Basic Sealed Angle Encoders architecture has three major components: integral bearing, hollow shaft, and Integrated stator coupling. It encases the most delicate components of the encoder, protecting them from whatever contamination may be present (IP54 protection).

AD series high-end angle encoders with integral bearing are characterized in particular by very high system accuracy in the global market. The integral bearing in the encoders eliminates any effect on measuring accuracy from the bearing of the machine components. The Integrated stator coupling expands the applicable range of axial installation to 0.5mm, which reduces the difficulty of processing and assembling related accessories.

specifications

ITEM	AD-20MA-C27
Shaft size D1	20g7(-0.010/-0.040)
D2	32
D3	110
D4	100
D5	36
D6	28
D7	M20*0.5
D8	85
H1	36
H2	3
H3	30
H4	6
M	4M430


1800rpm Optical Angle Encoder AD-20MA-C27 For Milling Lathe 0

1800rpm Optical Angle Encoder AD-20MA-C27 For Milling Lathe 2

1. what can you buy from us?

Digital readout system, Linear encoder, Magnetic encoder, Angle encoder, Accessories

2. why should you buy from us and not from other suppliers?

null

3. what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDU,Express Delivery；

Accepted Payment Currency: USD, CNY;

Accepted Payment Type: T/T,MoneyGram,Western Union,Cash;

Language Spoken:English, Chinese
