SINO CNC Lathe Machine With 550mm Width Features High Precision And Operates Vertically

Brand Name:	SINO
Model Number:	YSV-855
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

3 Axis Vertical Machine Center

Material:

Metal

Suitable For:

Milling Machine

Type:

Vercatal

Max. Spindle Speed (r.p.m):

10000 R.p.m

Width Of Bed (mm):

550 Mm

Spindle Motor Power(kW)::

12000

Number Of Axes:

3 Axis

Travel (X Axis)(mm):

850 Mm

Travel (Z Axis)(mm):

550 Mm

Positioning Accuracy (mm):

±0.005

Repeatability (X/Y/Z) (mm):

±0.003

Dimension(L*W*H):

2550*2900*2750

Supply Ability:

1000 pcs per month

Highlight:

550mm CNC Lathe Machine

Vertical CNC Lathe Machine

High Precision CNC Lathe Machine

Product Description

SINO YSV 855 CNC lathe machine known for its high precision and vertical operation

Ordinary Accessory

A control box that swivels, equipped with a semi-enclosed guard.
A low-energy lubrication system with a work light tailored for cars.
An automatic volumetric lubricator for transformers.
RS 232 spindle oil coolant code.
Automatic shutoff feature for an air gun.
Includes an instrument set and a rough tapping tool.
Comes with a leveling block and a user handbook.

Excellent performance of the machine tools

A Taiwanese tool magazine utilizing frequency converters dramatically enhances processing efficiency, reducing tool change times to just 1.4 seconds.
Standard features include all three axes for rapid and precise positioning, along with powerful torque generation.
Unlike other brands of similar models, this machine includes a standard spindle motor with an 11–15KW high-torque universal motor, making it especially suitable for heavy cutting tasks.
The machine tool components are manufactured by a reputable company with a well-established brand, employing state-of-the-art designs of its time.

Optional elements

Coolant Through Spindle (CTS)
Spindle Taper: (HSK/ISO/CAT/BT)
Spindle RPM
Automatic Tool Changer (ATC)
Extended Head
Optional controller: SINUMERIK 840D
Full Gearbox or ZF Gearbox

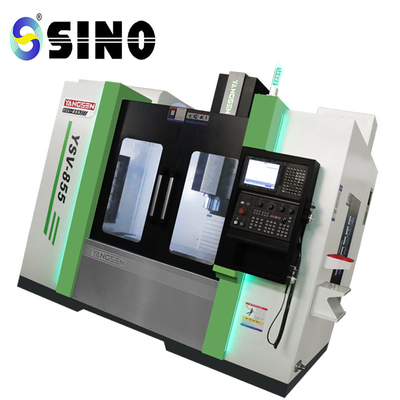

Product image /photos:

SINO CNC Lathe Machine With 550mm Width Features High Precision And Operates Vertically 0

Installation, commissioning, training and acceptance

Installation and Commissioning: Upon delivery of the machine tool, our service engineer will visit the customer's facility for installation, commissioning, and on-site training.
Customers can choose to send operators to our company for an initial week-long training session. Subsequently, our team will provide on-site training during the installation and commissioning at the customer's site.
Acceptance: Based on the supplier's ex-factory accuracy inspection table, acceptance involves examining items that can be evaluated at the customer's location. Inspection includes checks for positioning accuracy, spindle taper hole accuracy, and other specified criteria that must meet inspection requirements.

Machine working conditions

Three-phase AC Power Supply: 380V ±10%, -15%; Frequency 50Hz ±1Hz.
Ambient Temperature: 8°C to 40°C.
Relative Humidity: ≤80%.
Air Source Pressure: 0.6 MPa to 0.8 MPa.
