SINO 2 Axis LED Digital Readout System DRO SDS6-2VF with RS232-C Output interface

SDS6-2VF DRO equips the RS232-C output function for PC or other special systems' connection.

SDS6 series digital display counter employs the newest 16 bits SCM technology, is allowed to input the high frequency of A/B signals up to 5MHz. It can satisfy all kinds of basic function of different kinds of machine. So that’s an all-purpose DRO, the speed of measurement is faster, and the control system is easier and smoother. Each axis can supply 40 points of non-linear compensations to increase the accuracy.

Advanced Functions:

1. Calculation:

The counter can change the decimal digits to be 3, 4 or 5 digits to improve the calculating precision.

2. Non-linear error compensation:

The system has maximum 40 sections non-linear error compensation to improve the machining precision.

3. The numbers of decimal digits can be chosen in inch mode:

4 / 5 decimal digits can be chosen in inch mode. 4 digits can satisfy long scale requirement, and 5 digits can satisfy high precisions display.

4. Communication:

RS232-C output.

Specifications :

Counter Input Voltage Range: AC 80V~260V; 50~60Hz, different plug is available.

Power consumption: 15VA

Working temperature: 0~45℃

Storage temperature: -30~70℃

Input signal: TTL/RS422/EIA-422-A square wave

Input signal frequency: Less than 5MHz

Max resolution of digital display length: 0.5µm

Min resolution of digital display angle :0.0001/pulse

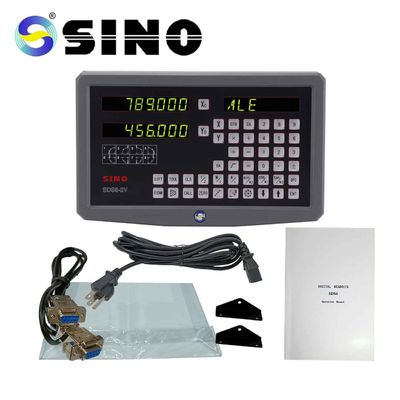

Product image /photos:

RS232-C Output Interface:

Size:

The rack in the picture is optioned, not standard product.
