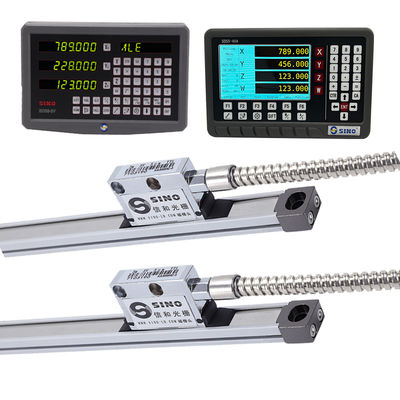

Aluminum Magnetic Linear Encoder

Aluminum Magnetic Linear Encoder
Aluminum Magnetic Linear Encoder Aluminum Magnetic Linear Encoder Aluminum Magnetic Linear Encoder

Large Image :  Aluminum Magnetic Linear Encoder

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS,ISO9001
Model Number: KA800MC-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

Aluminum Magnetic Linear Encoder

Item Name: Magnetic Linear Encoder Feature: Sensor Output IP67
Type: Magnetic Linear Encoder Sensor Scale Model: KA-800MC-5um
Output Signal: TTL Optional Accuracy: ± (0.035 + 0.02 X L)mm
Ruler Tape Specifications: 5+5mm Max Length: 1000,000mm
Operating Temperature: -20℃~85℃ Supply Voltage: 5VDC
High Light:

Aluminum Magnetic Linear Encoder


Small Magnetic Linear Encoder


5V Small Linear Encoder

Magnetic Linear Encoder Sensor Output IP67 Linear Encoder Scale



Magnetic Linear EncoderAdvantage,


*Three mounting holes for fixing with superior anti-interference ability.

* Wide range of installation tolerances *Stable performance

*Maximum speed 5m/s



Technical parameter



Magnetic Scale Sensor
Magnetic distance Each 5mm(C)
Pitch 5mm
Ruler tape specifications 5+5mm
Resolution 5µm
Available Gap 2mm
Accuracy ± (0.035 + 0.02 x L)mm,L:effective measuring length,Unit:m
Cable 5 core or 8 core
Output form TTL or RS-422
Gap between reading head and protective steel belt 0.8~1.8mm
Supply voltage 5VDC±5%,24VDC±5%
Current consumption (no load) 40mAMAX
Current consumption (with load) 120mAMAX(5V,RL=120Ω)
60mAMAX(28V,RL =1.2kΩ)
Maximum speed 5m/s(MS T 5)
Anti-vibration 100m/s2[10Hz~2000Hz]
Impact resistance 1000m/s2(11ms)
Protection level of reading head IP 67 DIN 40050/IEC 529
Operating temperature -20℃~85℃
Storage temperature -20℃~85℃
Humidity 100% Non-condensing
Electrical protection Power polarity inversion protection, output short-circuit current protection
Standard  cable 3m, LMAX=50m (cable of Read- head)
Measurement length cable




Encoder Magnetic Mcale Application


Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)

Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glassworking machine, Material handling



Detail picture:


Aluminum Magnetic Linear Encoder 0Aluminum Magnetic Linear Encoder 1Aluminum Magnetic Linear Encoder 2





Why choose us?


Magnetic scale can be cut as your requirement

A fully-sealed read-head with the perfect structure of the profile makes it match the IP67 protection class

Advanced technician and inner structure

Automatic gain control technician reduced the requirement for installation, The gap between the reader and tape can be 3mm (5 microns)



Questions & Answer :


1, What’s the max measurement length?

Measurement length up to 100,000mm

2, What are the length 120mm~ 100000mm represent?

Answer: All these lengths mean table travel length ( table moving size, NOT table size ) of the machine x y z-axis. You may need to add an extra 5.5 each for the total length.

3, If I need a full set of 2 Axis dro with scales for my lathe machine, how should I purchase them?

Answer: You can select, they are " 1pc 2 Axis dro " " Travel length **mm of the linear encoder or magnetic encoder" " Travel length ***mm", then you will receive what you want.

4, My machine's x-axis moving length is 260mm, and y-axis moving length is 530mm, can you offer this kind of length that is not listed in the options?

Answer: Each scale measuring range has a 20mm increment. That means the 250mm scale measuring range can reach up to 270mm. So you can select the 270mm scale and 570mm scale for your machine.

5, If i only buy 1 piece scale separately, can I get the user manual?

Answer: The user manual comes with DRO, But you can contact the seller to get the download.

6, What should I choose for my lathe or mill?

Answer: The lathe usually is a 2 axis readout while the mill can be either 2 axes or 3 axis

7, Can I cut the scale if it's too long for my machine?

Answer: Technicality NO. if you are a novice, otherwise, the scale may probably be damaged and cannot be used

8, Are they all shipped by Fed Ex, UPS, DHL?

Answer: Yes. Standard FedEx support and others are available
