Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling machin

Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin
Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin

Large Image :  Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling machin

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS6-3VA, KA300, Ka500
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000 pcs per month

Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling machin

Description
Name: SINO SDS6-3VA 3 Axis Digital Readout System Number Of Axis: 3 Axis Readout System Dro Systems
Material: Metal Signal: Digital Readout: TTL / RS422
Voltage: Digital Readout: AC100-240V / 50-60Hz Suitable For: Milling Machine, Boring Machine, Lathe
Resolution: 1um,5um,0.5um, 0.1umm
Highlight:

Optical Linear Scale

,

Digital Readout System

,

3 Axis Digital Readout System

Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling machine



Company Introduction

Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.



Description:

The SINO SDS2-3VA 3-Axis Digital Readout LCD DRO Display features a large screen, designed specifically for lathe and grinder applications. This high-quality product is available through Guangzhou Sino International Trade Co., Ltd., a leading wholesaler and exporter from China. With its affordable pricing and exceptional performance, the SDS2-3VA provides accurate and reliable digital readouts for various industrial machinery.

This product offers a variety of advanced features, including the ability to input high-frequency A/B signals up to 5 MHz, supporting the latest 16-bit SCM technology. The system also boasts fast measurement speeds, a user-friendly control system, and improved precision, making it an excellent choice for a range of applications like high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines.

The SDS6 series, known for its popularity, is especially suited for high-precision requirements. With capabilities like up to 40 points of non-linear compensation per axis, this system ensures exceptional accuracy, while its faster processing speeds enhance operational efficiency. Additionally, the SDS6 series is ideal for a wide array of industrial machinery, further establishing its versatility and reliability.



Specifications:
Voltage Range: AC 100V ~ 240V, 50 ~ 60Hz, with support for various plug types.
Power Consumption: 15VA
Operating Temperature: 0 ~ 45°C
Storage Temperature: -30 ~ 70°C
Input Signal: TTL/RS422 square wave
Signal Frequency: Less than 5 MHz
Max Resolution (Digital Display Length): 5µm (0.005mm / 0.0002")
Min Resolution (Digital Display Angle): 0.0001/pulse


Key Features:
Enhanced Calculator Function: Adjust decimal places to 3, 4, or 5 digits, allowing precise calculations for different machining requirements.
Non-Linear Error Compensation: The system supports up to 40 sections of non-linear compensation, improving machining precision.
Decimal Digit Selection (Inch Mode): Choose between 4 or 5 decimal digits for different precision needs, with 5 digits offering the highest level of display precision.
Communication Interface: An RS-232-C interface is available for seamless data transfer between devices.



Packaging List :

1 PC 3 Axis LED digital readout SDS6-3V
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

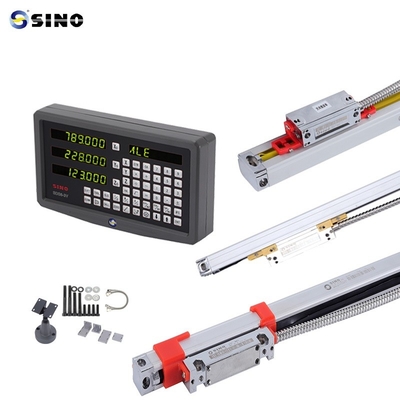

Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin 0

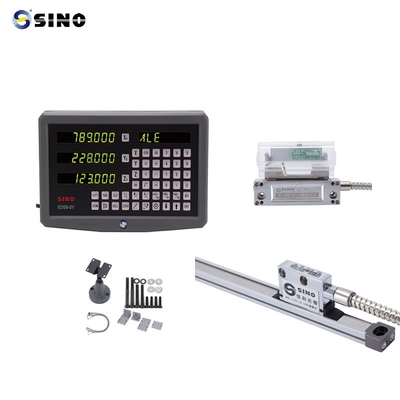

Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin 1

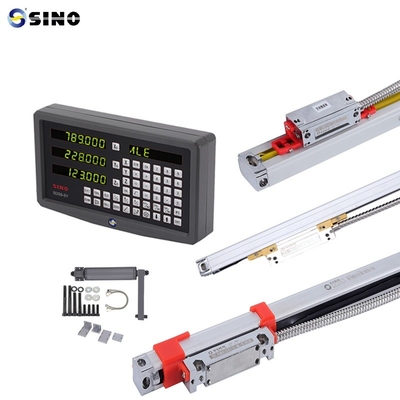

The rack in the picture is optioned, not standard product.

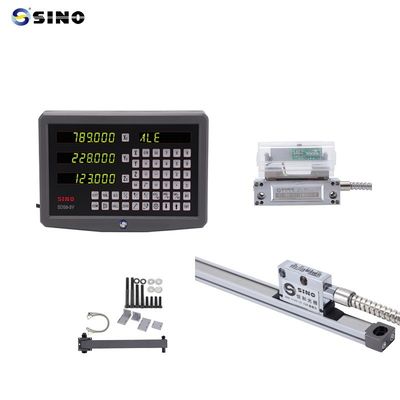

Metal 3 Axis Digital Readout System SDS6-3VA With High Precision Optical Digital Linear Scale for lathe milling  machin 2
