SINO 2 Axis Digital Display Readout Machine SDS2MS With Linear Encoder AC 100-240V SINO Digital Readout System SDS2MS Multifunctional

SINO 2 axis digital display readout machine SDS2MS with linear encoder AC 100-240V SINO Digital Readout System SDS2MS Multifunctional

Company Introduction

Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.

The SINO SDS2MS is an economy version of the advanced SDS6 series digital readout system. Designed for 2-axis position measurement, this system offers high precision and versatility for a range of machining applications. The SDS2MS incorporates the latest 16-bit SCM technology and supports high-frequency A/B signal inputs of up to 5MHz, ensuring superior performance even in demanding environments.

Key Features:

Economy Version of SDS6 Series: While more affordable, the SDS2MS retains many of the advanced features of the SDS6 series, providing excellent performance for 2-axis machining applications.
High-Speed Signal Input: Capable of accepting A/B signal frequencies of up to 5MHz, making it suitable for high-precision applications like coordinate boring machines, grinding machines, lathes, and milling machines.
16-Bit SCM Technology: Utilizes the latest 16-bit SCM technology, ensuring high-speed processing and reliable, accurate readouts in real-time.
Versatile Application: Ideal for coordinate boring machines, floor boring machines, grinding machines, lathes, milling machines, and other precision machinery requiring 2-axis measurement.
Lightweight Plastic Housing: The plastic casing is designed to reduce weight, lowering transportation costs while maintaining durability and reliability.
User-Friendly Operation: Simple installation and operation with a clear display, reducing setup time and making it easy for operators to use.

Product Benefits:

High-Precision Performance: Suitable for a wide variety of 2-axis machining applications requiring high accuracy.
Cost-Effective Solution: As an economy version, the SDS2MS offers a budget-friendly option without sacrificing key performance features.
Fast Data Processing: Supports 5MHz A/B signal input, providing fast response times for real-time adjustments.
Durable and Lightweight: The plastic housing is durable yet lightweight, making it easier to transport and install without compromising on performance.

The plastic case is try to make the weight ligher to save more transportation cost.

Upgraded Functions of SINO SDS2 Series Digital Readout
Advanced Calculator Function:

The SDS2 series supports flexible decimal digit settings, allowing users to select 3, 4, or 5 decimal places. This flexibility enhances calculation precision according to your specific machining needs, ensuring accurate measurements and reliable results.

Non-Linear Error Compensation:

To boost positioning accuracy, the system features a non-linear error compensation capability with up to 40 programmable sections. This function helps correct systematic errors in scale readings, resulting in significantly improved precision during machining operations.

Customizable Decimal Digits in Inch Mode:

When operating in inch units, users can choose between 4 or 5 decimal digits for display.

4 digits suit applications involving long scales where extended range is needed.
5 digits cater to high-precision tasks requiring extremely fine resolution.

Specifications of SINO SDS2MS Digital Readout System
Supply Voltage Range: AC 80V~260V; 50~60Hz

(US Plug available)

Power Consumption: 15VA

Operating Temperature: 0~45°C

(For optimal performance in standard working conditions)

Storage Temperature: -30~70°C

(Ensuring safe storage in a wide range of temperatures)

Readout Allowable Input Signal: TTL/RS422 square wave

Allowable Input Signal Frequency: Less than 5MHz

(Ensures stable and reliable data processing at high speeds)

Max Resolution of Digital Display Length: 0.5µm

(Provides ultra-fine measurement accuracy for high-precision tasks)

Min Resolution of Digital Display Angle: 0.0001/pulse

(Ideal for detailed and precise angle measurements)

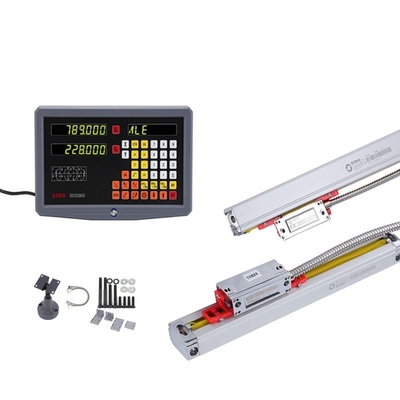

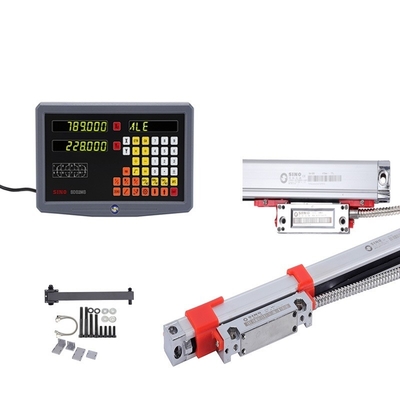

Product image /photos:

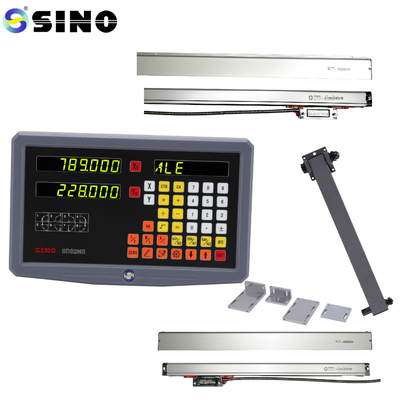

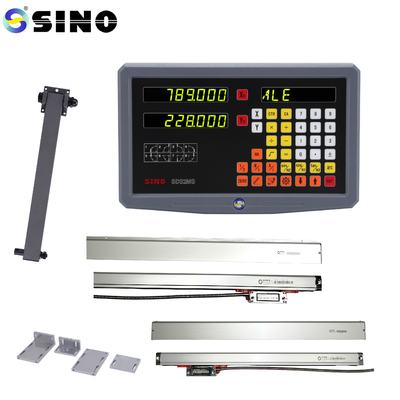

The rack in the picture is optioned, not standard product.
