Name: 50-60 Hz TTL Signal Milling Machine DRO Kits With 170mm Mill Head
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: SDS2-3VA, KA-300, KA-500
Availability: InStock

Brand Name:	SINO
Model Number:	SDS2-3VA, KA-300, KA-500
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

Economy TFT Digital Display Milling Head Package

Usage:

Axis Z Milling Head Positioning

System:

Digital Display SDS2-3VA Mill Head

Scale Model:

KA-300 And KA-500

Signal:

Input TTL / RS422

Resolution:

Ruler: 0.005mm/0.001mm

Voltage:

AC 100V-240V / 50-60 Hz

Meas. Travel:

Worktable: 70-1020mm, Mill Head: 170mm

Supply Ability:

3000 sets per month

Highlight:

50 Hz Milling Machine DRO

60 Hz Milling Machine DRO

170mm DRO Kits For Mills

Product Description

SINO 3 axis economy milling machine TFT LCD DRO kit SDS2-3VA for aixs Z milling head linear ruler

This package is special for 3 axis mill machine requirement, and the axis Z is special for milling head's ruler.

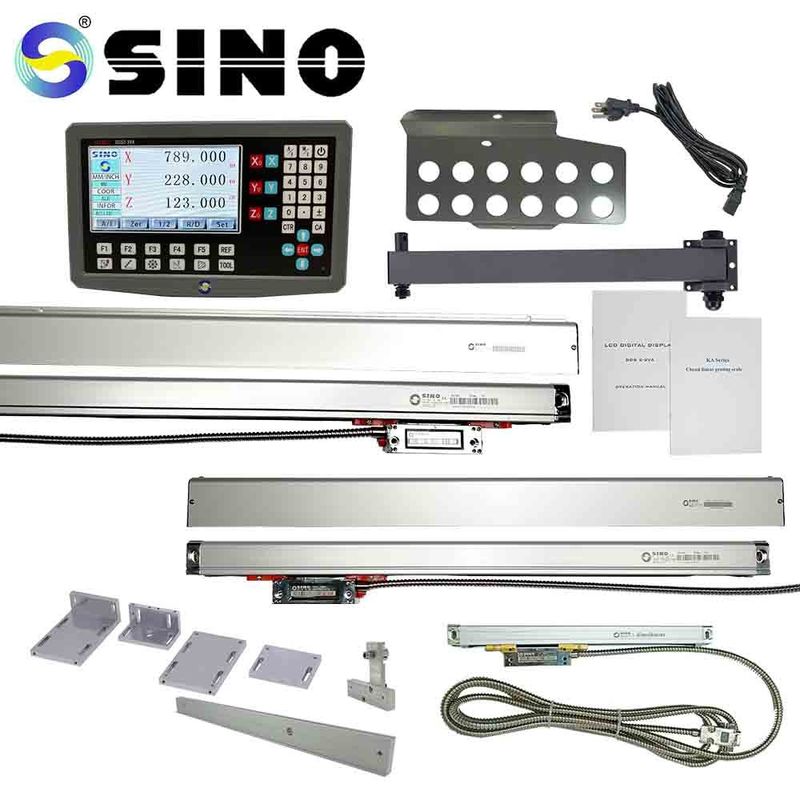

One economy 3-axis TFT LCD display DRO SDS2-3VA with two standard linear rulers KA-300 and one mini ruler KA-500.

Package list:

Item name	economy TFT DRO milling head kit
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis X	KA-300: 670-1020mm
Linear scale for axis Y	KA-300: 370-570mm
Linear scale for axis Z	KA-500: 170mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Accessory for Z Milling head	KA-500 milling head accessory (1 set)
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit
Smooth “R”
Simple “R”
Oblique Line Hole Positioning
PCD Circle Equally Dividing
Bevel Processing
Rectangular Inner Chamber Progressive Machining

Detail Information:

50-60 Hz TTL Signal Milling Machine DRO Kits With 170mm Mill Head 0

50-60 Hz TTL Signal Milling Machine DRO Kits With 170mm Mill Head 1

50-60 Hz TTL Signal Milling Machine DRO Kits With 170mm Mill Head 2

Pin Description:

50-60 Hz TTL Signal Milling Machine DRO Kits With 170mm Mill Head 3

All linear scales were tested before delivery. Here is a sample of a scale's test report.

50-60 Hz TTL Signal Milling Machine DRO Kits With 170mm Mill Head 4
