Product Details:
|
| Item Name: | 2 Axes Large Size Metal LED Milling Machine DRO Kit | Usage: | 2 Axes Large Size Milling Machine Positioning |
|---|---|---|---|
| System: | 2 Axes Large Size LED DRO SDS6-2V | Scale Model: | Linear Scale: KA-600, KA-300 |
| Signal: | Linear Scale: TTL / RS422 | Resolution: | Linear Scale: 0.005mm/0.001mm |
| Voltage: | DRO Kit: AC 100V-240V | Meas. Travel: | Linear Scale: 1000-3000mm, 70-1020mm |
| High Light: | 100V Mill DRO 2 Axis,240V Mill DRO 2 Axis,2 Axis Digital Readout For Milling Machine |
||
SINO 2 Axis Large Size Metal LED Milling Machine DRO Kit SDS6-2V With Two Linear Scales
The DRO kit is special for 2 axis large size milling machine positioning.
One 2-axis Metal LED DRO SDS6-2V with two linear grating scales KA-600 or KA-300.
KA-300 scale model: 70 - 1020mm
KA-600 scale model: 1000 - 3000mm

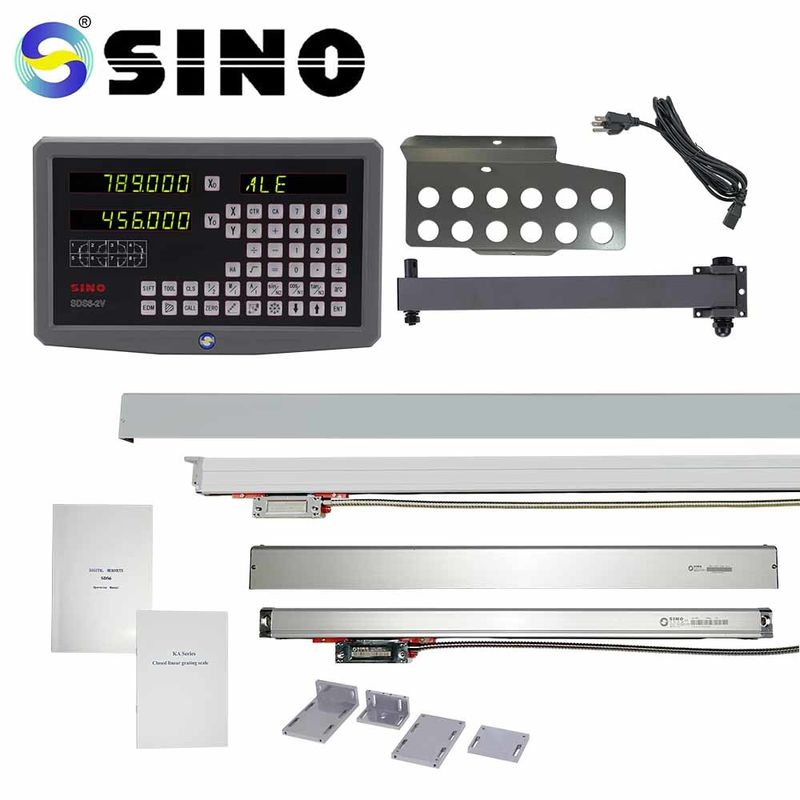

Package list:
| Item name | 2 axis large size LED metal milling machine DRO kit |
| Digital Readout (DRO) | SDS6-2V |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
