Product Details:
|
| Name: | Digital Readout Sino SDS3MS Syastem | Number Of Axis: | Digital Readout Kits With 3 Axis |
|---|---|---|---|
| Usage: | For Milling Lathe Machine Tools | Suitable For: | Lathe Milling Machine System |
| Name 2: | Counter For Digital Readout | Voltage: | AC 100~240V |
| Signal: | Input: TTL / RS422 | Warranty: | 1 Year |
| Accuracy: | 5um/1um/0.5um | ||
| High Light: | DRO Digital Readout System,1um DRO Digital Readout System,DRO Digital Readout Lathe Milling Machine |
||
DRO Digital Readout SDS3MS Display Sino SDS2-3MS Lathe Milling Machine
A multipurpose gauge with a numerical display for three coordinates is called a DRO SDS3MS.
By simply changing the parameters, this gauge can be made to perform the necessary function with a different machine tool.
Parameters for the SINO SDS3MS digital readout
The voltage spectrum: AC 50 to 60 Hz and 85 to 250 volts
2. 15 w electricity usage: 25 va
3. Coordinate the number using the notation a coordinate, two coordinates, and three coordinates.
4. Demonstrate that a signed seven display (with two or three axes) outputs data information utilizing eight meters of words and show symbols.
5. 2 kilograms
6. The input signal is TTL with an easy-to-use programmable controller interface and an EIA 422 open collector output signal.
7. Permit a signal input frequency of greater than 100 KHz
8. Adding a resolution: 10, 5, 2, 1, 0.5, and 1 micron
Basic Functions
mm/inch Transformation Absolute/Relative Transformation
Mid-split Function Simple “R” Function
Smooth “R” Function Divide the perimeter of circle
Save 200 workpiece zero points Divide holes on an oblique line
Mathematics calculation Tool diameter compensation
Bevel process Zero location autorest
| 1 PC | 3 Axis digital readout SDS3MS |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

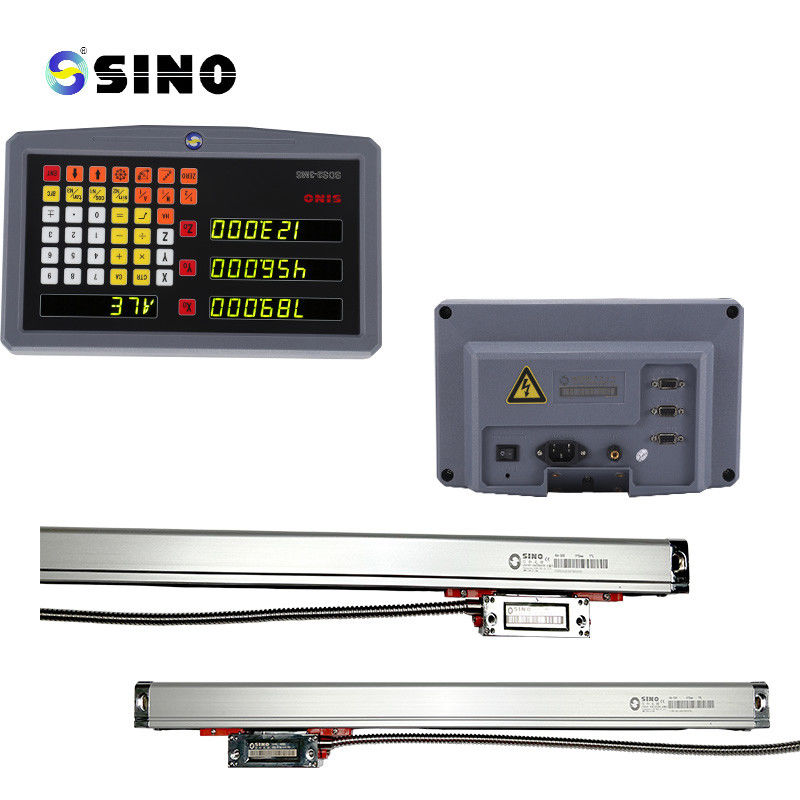

Product image /photos:
The rack in the picture is optioned, not standard product.
