Product Details:
|
| Name: | The SDS 2MS AC 100~240V Digital DRO 2 Axis KA300 Magnetic Scale System With Linear Error Correction, Nonlinear Error Cor | Number Of Axis: | 2 Axis DRO |
|---|---|---|---|
| Usage: | All Kinds Of 2 Axis Propose | Application: | Especially Suitable For Milling, Lathes, Grinding, And Electrical Discharge Machining |
| Signal: | TTL / RS4221 | Shipping Time: | 10–14 Days Following Full Payment |
| Display: | LED | Warranty Period: | 1 Year |
| Ambient Temperature: | -10~60℃ | Input Signal: | TTL / RS422 |
| Voltage Range: | AC85-250V / 50-60Hz | Sealing Protection: | IP53 |
| High Light: | Digital Readout Display Linear Glass Scale,Milling Machine Linear Glass Scale,Lathe Linear Glass Scale |
||
Double Axis Linear Glass Scale On SINO Digital Readout Display Applied To Lathe And Milling Machine
The SDS 2MS AC 100-240V digital DRO 2-axis KA300 linear error correction and nonlinear error correction magnetic scale system has the following characteristics:
Dual axis DRO: With the support of this kit, you may simultaneously monitor and control the movement of the machine along two axes, for example, the X and Y axes in a milling machine. This enables you to analyze the equipment's functioning condition with great clarity.
Magnetic ruler encoder system: To produce precise and consistent readings, the KA300 linear ruler encoder system makes use of magnetic technology. The DRO display unit and the magnetic balance, which is mounted on the machine shaft, are utilized to monitor work progress and offer position feedback at all times.
Broad voltage range: Between 100V and 240V AC, the SDS 2MS DRO kit is made to operate best over a broad voltage range. Its ability to adjust voltage guarantees interoperability with different power supply standards.
Interface that is easy to use: The DRO display unit features an interface that is easy to use, often consisting of buttons and a digital display screen. You can save time by switching between different measurements of u.
Enhanced Components:
1.One is linear error correction.
2.Nonlinear error correction is the second.
3. Turn off the memory.
4. There is no change in tempo.
The Digital DRO 2 axis Readout details
1. An AC voltage range of 50 to 60 Hz, 85 to 250 volts.
2. 15 watts of power were consumed at 25 volts.
3. The number should be denoted by a coordinate, two coordinates, and three coordinates.
4. Display symbols that produced data information by signing eight meters words and seven displays (two or three axes).
5. Net Weight: 1.3 kilos/2.9 lbs.
6. The input signal is a simple TTL interface with an open collector output signal conforming to EIA-422 and a programmable controller.
| 1 PC | 2 Axis digital readout SDS2MS |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

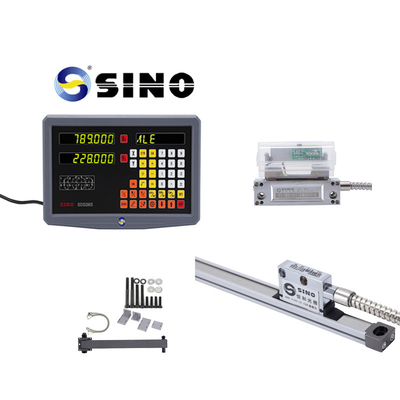

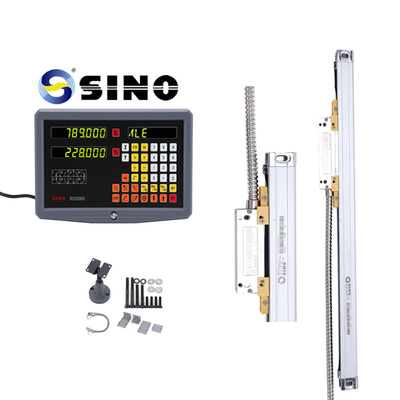

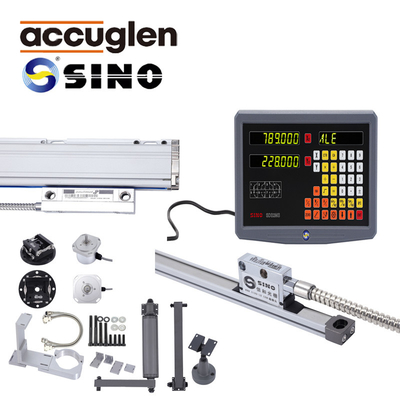

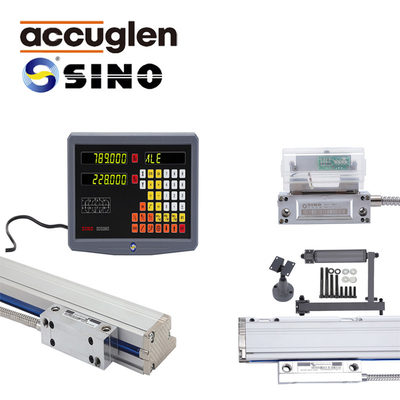

Product image /photos:
The rack in the picture is optioned, not standard product.
