Introduction to SDS2MS:

The SDS 2MS digital DRO and 2-axis KA300 linear error correction and nonlinear error correction magnetic scale system have the following characteristics:

Dual axis DRO: This kit supports dual axis measurement, allowing you to simultaneously monitor and control the movement of the machine along two axes, such as the X and Y axes in a milling machine, allowing you to observe the working status of the equipment very well.

Magnetic ruler encoder system: The KA linear ruler encoder system utilizes magnetic technology to provide accurate and repeatable measurements. The magnetic balance is installed on the machine shaft and used together with the DRO display unit to provide position feedback and keep track of the work progress at any time.

Wide voltage range: The SDS 2MS DRO kit is designed to support a wide voltage range for optimal operation between 100V and 240V AC. This voltage flexibility ensures compatibility with various power supply standards.

User friendly interface: The DRO display unit has a user-friendly interface, usually with a digital display screen and buttons, making it easy to operate. It allows you to switch between different measurements of u, saving work time.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

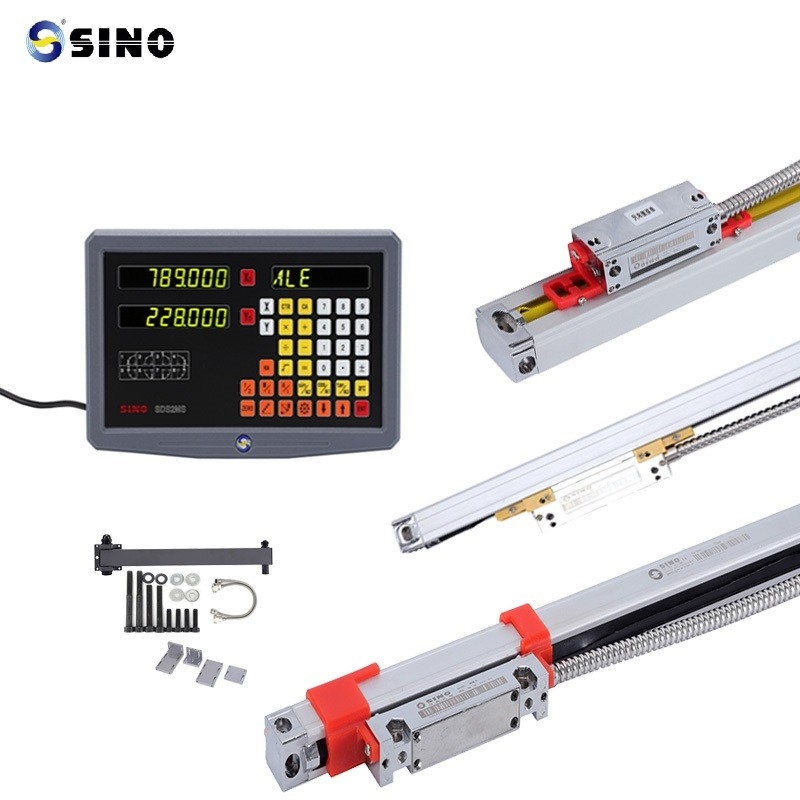

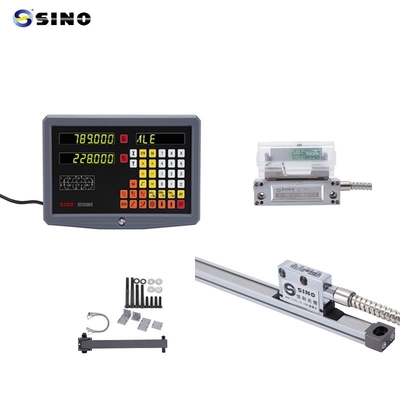

Product image /photos:

​

The rack in the picture is optioned, not standard product.
