Product Details:
|
| Name: | Linear Scale And 2-Axis SDS6-2V Digital Readout Kits | Application: | Precision Grinder And Drilling |
|---|---|---|---|
| Material: | Iron | Sealing Protection Method: | IP53 |
| Input Signal: | TTL / RS232 | Warranty Period: | +5V±5%、80mA |
| After Sales Service: | 12 Months | Effective Length: | 30~3000mm |
SDS6-2V Digital Reading Display And Linear Grating Ruler Specifically Designed For Milling/Machine Processing Technology
The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can better complete corresponding tasks and effectively improve the quality of production processes.
The functions of SDS6-2V include:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
SDS6-2V DRO commonly used processing locations:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Specifics of SDS6-2V:
The dual axis digital reading display DRO SDS-6-2V has multiple uses. Users can adjust the system configuration and choose a processing method that suits their different processing needs. Operators can use SDS6-2V to perform many measurement tasks, including but not limited to measuring taper, calculating arcs, passing through slopes, drilling holes at regular intervals around the center of the circle, and using digital filters. Thanks to these powerful features, SDS6-2V can be used in various machining environments, allowing users to better understand the movement trajectory of the equipment and display the machine's movement trajectory more comprehensively to determine whether the machine is running on the expected machining trajectory. When errors or errors occur, staff can also make corrections in a timely manner to avoid defective products. It is also the first company in China to use a DRO system with 16 bit and 32-bit calculators. The maximum a/b input frequency of the DRO system is 5.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

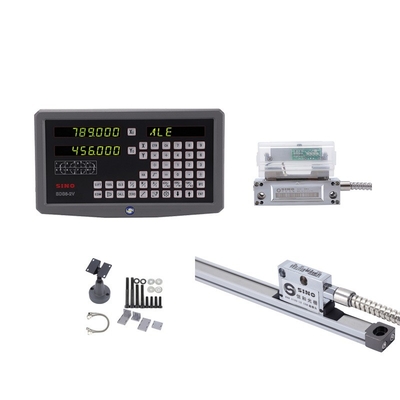

Product image /photos:
The rack in the picture is optioned, not standard product.
