SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines

SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines
SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines
SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines

Large Image :  SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE, RoHS
Model Number: SDS2MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines

Description
Name: SDS2MS Digital Reading Display Number Of Axis: 2 Axis
Usage: Milling Machine, Drilling Voltage: AC85-250V / 50-60Hz
Effective Range: 30~3000mm Resolution: 0.1/0.5/1/5μm
Energy Source: +5V±5%、80mA
High Light:

Measuring Accuracy Digital Reading Display

,

Milling Machines Digital Reading Display

,

SDS2MS Digital Reading Display

SDS2MS Digital Reading Display Commonly Used For Measuring Accuracy On Milling Machines





Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:



1. Dual axis DRO: With the support of this kit, you can simultaneously monitor and control the movement of the machine tool along two axes, such as the X and Y axes in a milling machine. This allows you to have a very clear understanding of the real-time workplace, allowing you to make the right decisions.

2. Magnetic ruler encoder system: In order to generate accurate and consistent readings, SDS2MS is equipped with a KA linear ruler encoder system, which uses magnetic technology. The DRO display unit and magnetic balance installed on the machine shaft are used to monitor work progress and provide position feedback at any time, reflecting the position of the equipment in a timely manner.

3. Wide voltage range: The SDS 2MS DRO kit can operate optimally within a wide voltage range between 85V and 240V AC. Its ability to regulate voltage ensures interoperability with different power supply standards. The correct voltage ensures that the equipment can operate normally and accurately measure the position of the machine tool.

4. Easy to use interface: The interface of the DRO display unit is easy to use and usually consists of buttons and a digital display screen. It has many preset functions, and you can switch back and forth between different functions through function buttons.



Capabilities possessed:



1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.



Detailed parameters of DRO SDS2MS digital readout system:



1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns



Packaging List :

1 PC 2 Axis digital readout SDS2MS
1 PC  Transparent cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

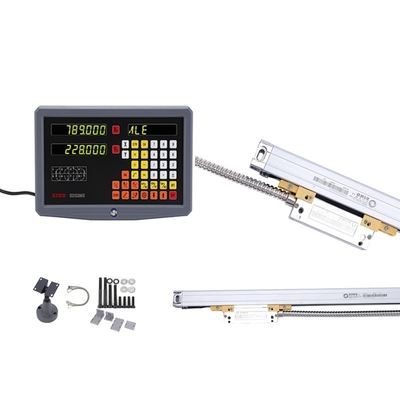

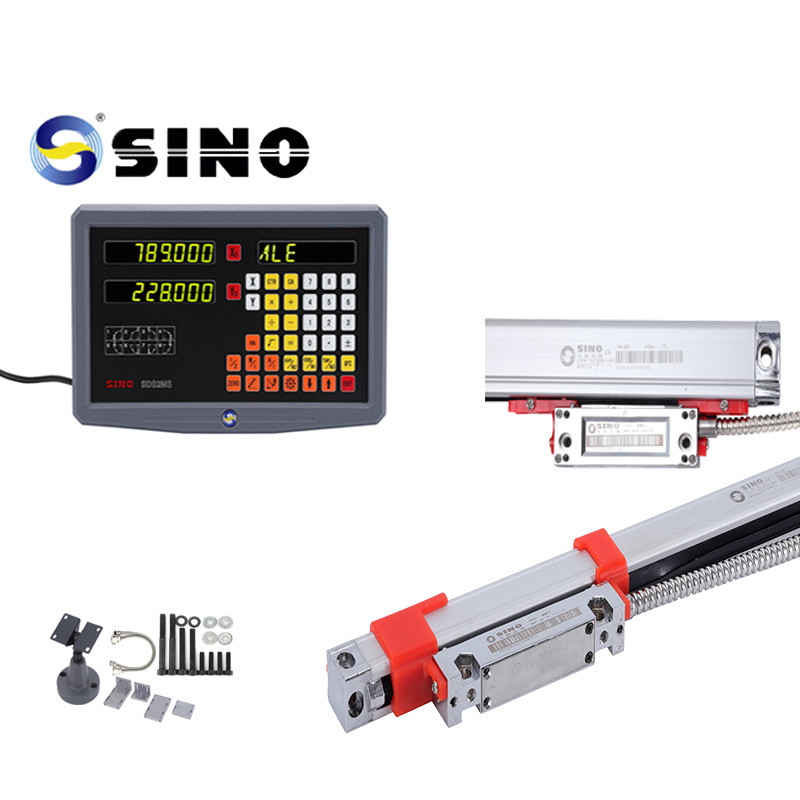

SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines 0

SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines 1



SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines 2SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines 3SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines 4

SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines 5

The rack in the picture is optioned, not standard product.



SDS2MS Digital Reading Display Commonly For Measuring Accuracy On Milling Machines 6
