Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display

Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display
Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display
Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display

Large Image :  Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE, RoHS
Model Number: SDS2MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month

Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display

Description
Name: Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display Number Of Axis: 2 Axis
Usage: Milling Machine, Precision Grinder Voltage: AC85-250V / 50-60Hz
Effective Range: 3~300cm Max Of Measuring Speed: 60m/min
Reference Point: Every 50mm
High Light:

30-3000mm Milling Machine

,

Milling Machine With Linear Glass Scale

,

5μm Milling Machine

Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display

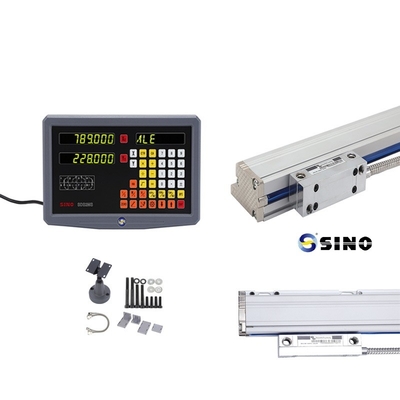

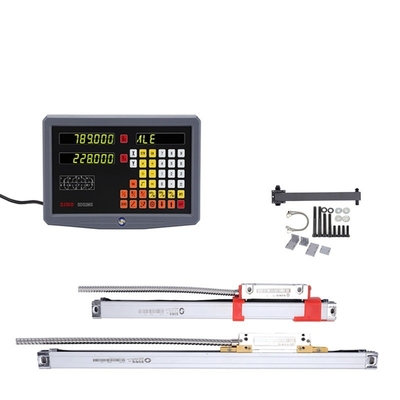

Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:



1. Dual axis DRO: With this kit, you can simultaneously observe and manage the movement of the machine tool along two axes, such as the X and Y axes in a milling machine. This will allow you to have a real-time and clear understanding of the motion trajectory of the milling machine during operation, enabling you to make wise decisions.

2. Magnetic ruler encoder system: When SDS2MS and KA linear ruler encoder system work together, magnetic technology can generate accurate and reliable readings, positioning to the real-time position of the machine tool. The magnetic balance and DRO display unit of the machine shaft are used to track work progress and provide position feedback when needed, enabling the equipment to accurately and timely locate the corresponding position.

3.The wide voltage range required for the SDS 2MS DRO kit is 85V to 240V AC. Its voltage regulation ability ensures compatibility with various power supply standards. Only by correctly applying voltage can the equipment function properly and accurately measure the position of the machine tool.

4. User friendly interface: SDS2MS consists of buttons and a digital display screen, and the interface operation of the DRO display unit is simple. It has many preset functions, and the function buttons allow you to quickly switch between them and obtain effective data at any time.



Capabilities possessed:



1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.



Detailed parameters of DRO SDS2MS digital readout system:



1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns



Packaging List :

1 PC 2 Axis digital readout SDS2MS
1 PC  Transparent cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display 0

Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display 1



Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display 2Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display 3Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display 4

Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display 5

The rack in the picture is optioned, not standard product.



Milling Machine With Linear Glass Scale 5μm 30-3000mm, With 2-Axis SDS2MS Digital Display 6
