A Common Two-Axis Digital Reading Display For Precision Metal Processing SDS2MS DRO

A Common Two-Axis Digital Reading Display For Precision Metal Processing Is SDS2MS DRO​

Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:

1. Dual axis DRO: This kit allows you to oversee and manage the movement of a machine tool along two axes at the same time, such as the X and Y axes in a milling machine. This makes it possible for you to clearly assess the equipment's state of operation.

2.Magnetic ruler encoder system: The KA linear ruler encoder system makes use of magnetic technology to generate readings that are precise and reliable. The position of the equipment is promptly reflected by the DRO display unit and the magnetic balance mounted on the machine shaft, which are utilized to track the status of the job and provide position feedback at any moment.

3. Broad voltage range: The SDS 2MS DRO kit functions optimally in a wide voltage range, which is between 100V and 240V AC. Its voltage regulation capability guarantees compatibility with various power supply standards. The equipment can operate correctly if the voltage is set appropriately.

4. User-friendly interface: Typically comprised of buttons and a digital display screen, the DRO display unit's interface is simple to operate. By using the feature button to toggle between various measurement data, you can save time.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. AC 85 v ~ 250 v / 50 hz ~ 60 hz is the voltage range.

2. 15 watts of power used: 25 va

3. Align the number using the a and two locations.

4. Demonstrate how to use eight meters of words and symbols to output data information using a signed seven display (two or three axes).

5. Net Weight: 2.9 lbs./1.3 kilogram

6. The input signal is an easy-to-use interface with a programmable controller, TTL, EIA-422 open collector output signal.

7. Permit a frequency of input signal exceeding 100 kHz.

8. Ten, five, two, one micron, one micrometer, and five microns are the resolutions to link.

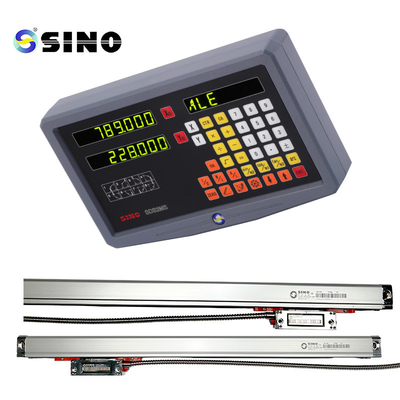

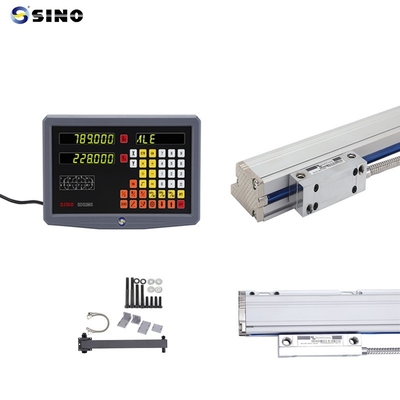

Product image /photos:

​

The rack in the picture is optioned, not standard product.
