SINO SDS2-3VA 3 Axis DRO Digital Readout With KA300 Glass Linear Taper Measurement Tool Collection

SINO SDS2-3VA 3-Axis Digital Readout Meter with KA300 Glass Linear Ruler and TTL/RS422 Signal Compatibility​

SINO SDS2-3VA 3-Axis DRO Digital Readout System Featuring KA300 Glass Linear Ruler, Taper Measurement, and Tool Management.

These enhancements streamline graphic functions, marking a pioneering use of 16- and 32-bit calculators in China's DRO systems. The system boasts an impressive input frequency of up to 5MHz with A/B, ranking among the world's highest.

The SINO SDS2-3VA is a 3-axis digital readout meter designed for compatibility with the KA300 glass linear ruler and support for TTL/RS422 signals. It accurately displays and measures the positions of machine tool axes across diverse applications. The KA300 glass linear ruler offers precise and reliable position feedback, while the TTL/RS422 signal facilitates rapid and dependable communication between the ruler and the readout meter.

Accurate Positioning: The SINO SDS2-3VA digital readout meter guarantees precise measurement and positioning of machine tool axes, delivering dependable results for machining tasks.

KA300 Glass Linear Ruler: Featuring outstanding durability and stability, the KA300 glass linear ruler provides reliable position feedback, even in rigorous industrial environments.

TTL/RS422 Signal Compatibility: This digital readout meter supports both TTL and RS422 signals, ensuring efficient and dependable communication with the KA300 glass linear ruler.

User-Friendly Interface: With an intuitive interface and clear numeric displays, the digital readout meter simplifies the reading and interpretation of position information for operators.

Flexible Configuration: Supporting up to three axes, the system enables simultaneous measurement and monitoring of multiple machine tool axes, enhancing operational flexibility.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD Circumferential Division: Enables precise division for spark testers and milling machines.

Involute Chamber Machining: Facilitates machining of involute chambers on milling machines.

Bevel Machining and Angular Surface Processing: Specifically tailored for milling machines to handle bevels and angular surfaces.

N3 Function: Unique to milling machines, supports diagonal boring operations.

R-Arc Function: Milling machine-specific function for creating R-arcs.

Taper Measurement Function: Exclusive to lathes, ensures accurate taper measurement.

200-Tool Collection: Lathe feature enabling extensive tool management capabilities.

Anti-Dithering Function: Essential for grinding machines, prevents undesirable oscillations.

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA includes preset functions for storing and recalling specific measurement values. Ideal for repetitive machining tasks, this feature ensures consistent and precise measurements are easily replicated.

Error Compensation: Offering error compensation capabilities, the system adjusts for machine tool inaccuracies and measurement errors. Calibration and application of compensation values enhance measurement accuracy significantly.

Data Interface: Some SDS2-3VA models feature data interfaces like RS-232 or USB for seamless data transfer and communication with external devices. This capability supports connectivity with computers and facilitates data logging, crucial for quality control and analysis.

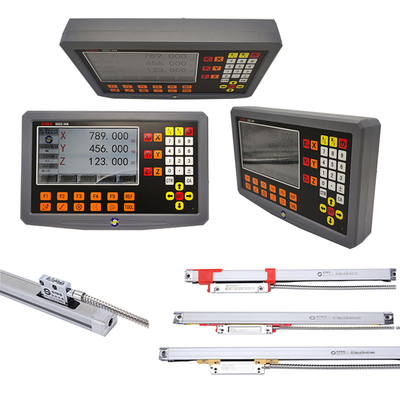

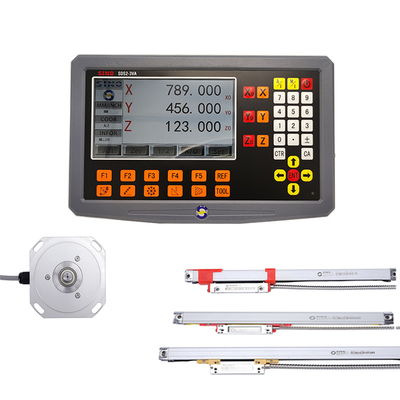

Product image /photos:

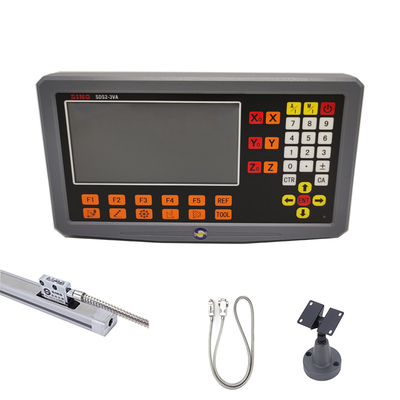

The rack in the picture is optioned, not standard product.
