SDS6-2V SINO Dro 2 Axis CE With Linear Scale SINO Digital Readout System For Lathe Mill

SDS6-2V SINO Dro 2 Axis CE With Linear Scale SINO Digital Readout System for lathe mill

The SDS6 series is highly popular and widely used in high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, milling machines, and similar equipment. It supports high-frequency A/B signals up to 5 MHz and utilizes advanced 16-bit SCM technology, making it versatile for various requirements. The system offers faster measurement speeds and smoother control, with each axis providing 40 points of non-linear compensation to enhance accuracy.

SDS6-2V is the 2-axis version of the SDS6 series digital readout systems. It retains the advanced features of the SDS6 series, including support for high-frequency A/B signals and 16-bit SCM technology. The SDS6-2V is designed to provide accurate and efficient measurement and control for machines with two axes, making it suitable for various precision machining applications.

Basice information:

The SDS6-2V operates on AC 100~240V at 50~60Hz, with a power consumption of 15VA. It functions within an operating temperature range of 0~45°C and can be stored at -30~70°C. The readout accepts TTL/RS422 square wave signals with a frequency of up to 5MHz. The maximum resolution for digital display length is 5µm (0.005mm/0.0002"), and the minimum resolution for angle display is 0.0001/pulse.

Strengthen Functions:

1. Enlarged Calculator Function: The system allows for the adjustment of decimal digits to three, four, or five digits, enhancing calculation precision as needed.
2. Non-Linear Error Compensation: Up to 40 sections of non-linear error compensation are available to improve machining accuracy.
3. Decimal Digits in Inch Mode: In inch mode, you can select 4 or 5 decimal digits. Four digits are suitable for long-scale requirements, while five digits provide high precision display.
4. Communication: An RS-232-C interface is available for data communication.

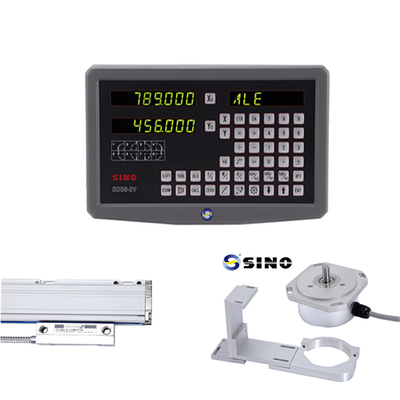

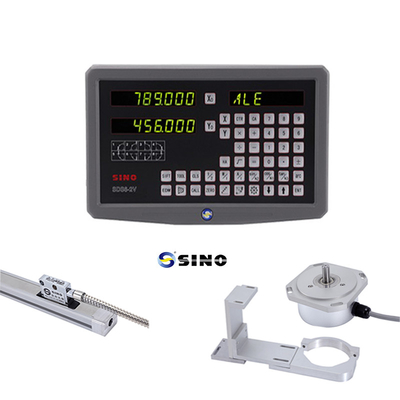

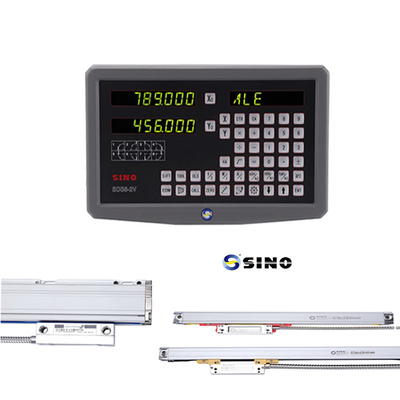

Product image /photos:

The rack in the picture is optioned, not standard product.
