3-Axis DRO Digital Readout SINO SDS2-3VA DRO Linear Scale Encoder For Lathe Mill Machine

For A Lathe Mill Machine A 3-Axis DRO Digital Readout SINO SDS2-3VA DRO With A Linear Scale Encoder​

Crucial attributes:
1️⃣ 3-Axis Capability: The SDS2-3VA DRO meter is made for tools that need to be precise in many axes, such grinders, lathes, and milling machines. It can simultaneously monitor and control three axes.
2️⃣ KA300 Glass Linear Ruler: Known for its dependability and accuracy, this digital readout meter works with the KA300 glass linear ruler to ensure precise alignment during machining.
3️⃣ TTL/RS422 Signal Support: The SDS2-3VA improves communication between the linear ruler and the digital readout meter by offering precise data transmission via TTL/RS422 signals.

4️⃣ Digital Display: The meter's digital display provides real-time measurements, enabling accurate machining process monitoring and control.

5️⃣ User-Friendly Interface: The DRO meter's user-friendly interface makes setup, customization, and operation simpler, making it easier for operators to use.

The graphics function is more user-friendly thanks to these enhancements. It is noteworthy for being the first facility in China to integrate a 16- and 32-bit calculator in a DRO system, and for reaching one of the highest input frequencies in the world—up to 5 MHz using A/B.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD Circumferential split: This feature, which is frequently used in milling machines and spark testers for precise placement and repetitive machining activities, enables the exact split of circumferences into equal segments.

Involute Chamber Machining (Milling Machines): Specifically designed for milling machines, this feature enables the machining of involute profiles, essential for producing gears and other specialized components with involute shapes.

Bevel Machining and Angular Surface Processing (Milling Machines): This capability allows milling machines to perform bevel machining and process angular surfaces with high precision, ensuring accurate cuts and surface finishes.

N3 Function (Milling Machines): The N3 function provides advanced features such as complex interpolation and control of additional axes, enhancing the machine's versatility for intricate milling operations.

Diagonal Boring (Milling Machines): This function enables milling machines to execute diagonal boring operations, facilitating efficient boring at angles other than perpendicular or parallel to the workpiece surface.

R-Arc Function (Milling Machines): The R-Arc function allows for machining arcs with specified radii, providing precise control over curved surfaces and profiles.

Taper Measurement Function (Lathes): Tailored for lathes, this function accurately measures and monitors taper angles during turning operations, ensuring precise dimensional control.

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions:The SDS2-3VA system includes preset functions that allow operators to store and quickly recall specific measurement values. This feature streamlines repetitive machining tasks by enabling easy retrieval and application of precise settings, enhancing efficiency and consistency in production processes.

Error Compensation:This feature allows the SDS2-3VA system to compensate for potential inaccuracies in machine tools or measurement deviations. By calibrating the system and applying correction values, it improves the overall accuracy of measurements, ensuring that machining operations adhere to tight tolerances and high-quality standards.

Data Interface:Certain models of the SDS2-3VA digital readout system come equipped with data interfaces such as RS-232 or USB. These interfaces facilitate seamless data transfer and communication between the digital readout unit and external devices (e.g., computers or data logging systems). This connectivity supports real-time monitoring, data recording, and analysis, thereby aiding quality control efforts and process optimization in manufacturing environments.

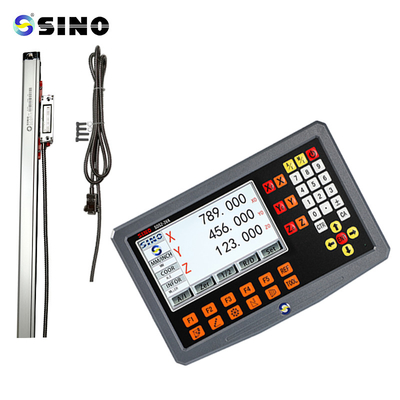

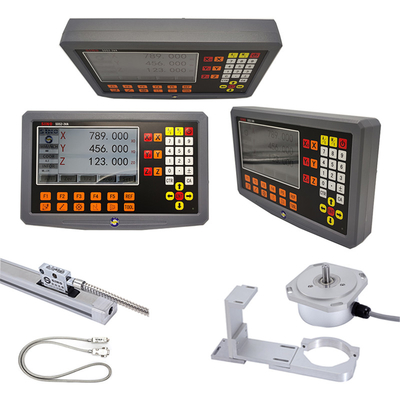

Product image /photos:

The rack in the picture is optioned, not standard product.
