Lathe Mill Machine's 3-Axis DRO Digital Readout SINO SDS2-3VA DRO Utilizing Linear Scale Encoder

For A Lathe Mill Machine A 3-Axis DRO Digital Readout SINO SDS2-3VA DRO With A Linear Scale Encoder​

Important characteristics:

1️⃣ 3-Axis Capability: The SDS2-3VA DRO meter is designed for instruments, including milling machines, grinders, and lathes, that require accuracy in several axes. Three axes can be simultaneously monitored and controlled by it.

2️⃣ KA300 Glass Linear Ruler: Using the KA300 glass linear ruler to guarantee exact alignment during machining, this digital readout meter—which is renowned for its durability and accuracy—is used.
3️⃣ TTL/RS422 Signal Support: The SDS2-3VA provides accurate data transmission via TTL/RS422 signals, which enhances communication between the linear ruler and the digital readout meter.

4️⃣ Digital Display: The digital display of the meter offers real-time measurements, making precise monitoring and control of the milling process possible.

5️⃣The DRO meter boasts an intuitive interface that simplifies setup, customization, and operation, hence facilitating operators.

The graphics function is more user-friendly thanks to these enhancements. It is noteworthy for being the first facility in China to integrate a 16- and 32-bit calculator in a DRO system, and for reaching one of the highest input frequencies in the world—up to 5 MHz using A/B.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD Circumferential split: This feature, which is frequently used in milling machines and spark testers for precise placement and repetitive machining activities, enables the exact split of circumferences into equal segments.

The function known as "Involute Chamber Machining" is exclusive to milling machines and makes it possible to manufacture involute profiles, which are necessary for manufacturing gears and other specialty components with involute geometries.

Bevel and Angular Surface Processing (Milling Machines): This feature enables milling machines to precisely process angular surfaces and execute bevel machining, guaranteeing precise cuts and surface finishes.

N3 Function for Milling Machines: This function enhances the machine's versatility for complex milling operations by offering sophisticated capabilities including complex interpolation and control over extra axes.Diagonal Boring (Milling Machines): This function enables milling machines to execute diagonal boring operations, facilitating efficient boring at angles other than perpendicular or parallel to the workpiece surface.

R-Arc Function (Milling Machines): The R-Arc function allows for machining arcs with specified radii, providing precise control over curved surfaces and profiles.

Taper Measurement Function (Lathes): Tailored for lathes, this function accurately measures and monitors taper angles during turning operations, ensuring precise dimensional control.

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions:The SDS2-3VA system includes preset functions that allow operators to store and quickly recall specific measurement values. This feature streamlines repetitive machining tasks by enabling easy retrieval and application of precise settings, enhancing efficiency and consistency in production processes.

Error Compensation:This feature allows the SDS2-3VA system to compensate for potential inaccuracies in machine tools or measurement deviations. By calibrating the system and applying correction values, it improves the overall accuracy of measurements, ensuring that machining operations adhere to tight tolerances and high-quality standards.

Data Interface:Certain models of the SDS2-3VA digital readout system come equipped with data interfaces such as RS-232 or USB. These interfaces facilitate seamless data transfer and communication between the digital readout unit and external devices (e.g., computers or data logging systems). This connectivity supports real-time monitoring, data recording, and analysis, thereby aiding quality control efforts and process optimization in manufacturing environments.

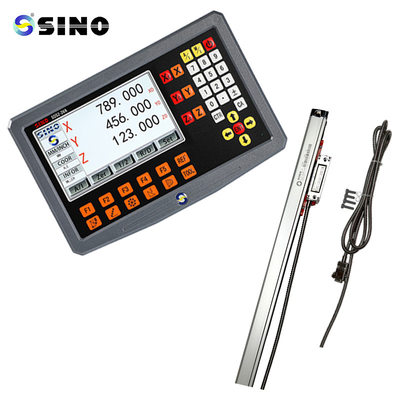

Product image /photos:

The rack in the picture is optioned, not standard product.
