The SDS6 digital readout is a sophisticated device designed for versatility across various machines. With the ability to handle high-frequency A/B signals up to 5 MHz, it leverages advanced 16-bit SCM technology to deliver accurate and rapid measurements. Each axis can accommodate up to 40 points of non-linear compensation, significantly improving accuracy.

One of its standout features is the RS232-C output, which allows seamless connection to PCs or other specialized systems, enhancing its functionality. Overall, the SDS6-3VF DRO offers a smoother control system and faster measurement speeds, making it an excellent choice for a range of applications in machining and fabrication.

Strengthen Functions:

Enlarged Calculator Function:The SDS6 digital readout provides flexibility by allowing users to adjust decimal places to three, four, or five digits. This feature enhances calculation precision, enabling operators to tailor the readout according to the specific requirements of their tasks. This adaptability makes the SDS6 particularly useful in applications where precision is critical.

Non-linear Error Compensation:The SDS6 digital readout supports up to 40 sections of non-linear error compensation, which greatly enhances machining accuracy. This feature allows for precise adjustments tailored to the specific characteristics of the machine or workpiece, ensuring that measurements are consistently accurate throughout the machining process. This level of compensation is especially beneficial in complex or intricate machining applications.

Decimal Digit Selection in Inch Mode:In inch mode, the SDS6 digital readout offers users the option to select either four or five decimal digits. Four digits are well-suited for long-scale measurements, providing a good balance between readability and precision. On the other hand, five digits are perfect for high-precision displays, catering to tasks that require more detailed measurements. This flexibility allows operators to choose the most appropriate setting based on their specific needs.

Communication:The SDS6 digital readout includes an RS232-C output, enabling easy connectivity with PCs and other specialized systems. This feature facilitates data transfer and integration with external devices, enhancing the system's functionality and allowing for more advanced data analysis or monitoring capabilities.

Specifications :

Supply Voltage Range: AC 80V–260V; 50–60Hz (US plug available)
Power Consumption: 15 VA
Operating Temperature: 0–45°C
Storage Temperature: -30–70°C
Allowable Input Signal: TTL/RS422 square wave
Allowable Input Signal Frequency: Up to 5 MHz
Maximum Resolution of Digital Display Length: 0.5 µm
Minimum Resolution of Digital Display Angle: 0.0001/pulse

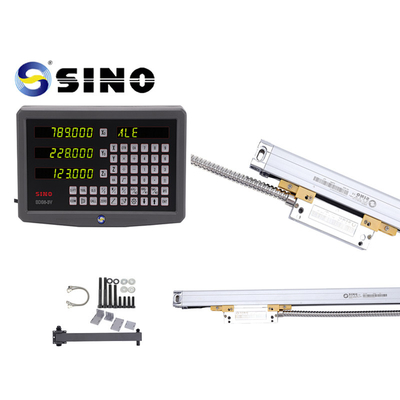

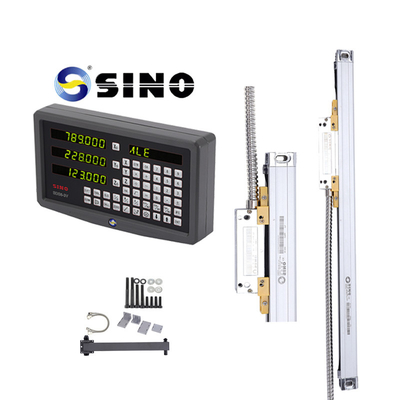

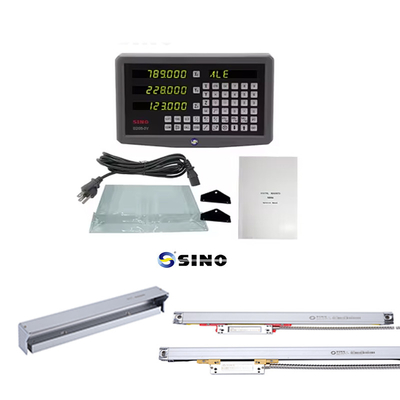

Product image /photos:

RS232-C Output Interface:

Size:

The rack in the picture is optioned, not standard product.
