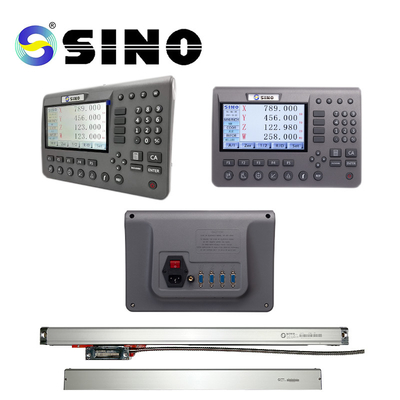

For Milling MachineTwo-Axis DRO SDS 200 Kit Metal LCD Full Touch Screen Has A 0.005mm Resolution

2 Axes DRO SDS 200 Kit Metal LCD Full Touch Screen 0.005mm Resolution Practical For Milling Machine

The LCD Full Touch Screen DRO (Digital Readout) system is an upgrade for your milling machine. This device guarantees accurate measuring and positioning specifically designed for metal milling applications because to its high resolution of 0.005mm. Its user-friendly touch screen interface makes operation and navigation simple.

Description:

The LCD Full Touch Screen DRO (Digital Readout) system is an upgrade for your milling machine. This device guarantees accurate measuring and positioning specifically designed for metal milling applications because to its high resolution of 0.005mm. Its user-friendly touch screen interface makes operation and navigation simple.providing accurate readings and enhancing overall efficiency in your machining tasks. Experience the convenience and reliability that this advanced DRO system offers!

Features:

LCD Full Touch Screen Interface: Provides a smooth user experience through simple and intuitive control.

The Measurement of Two Axes Capability: Ideal for metal milling equipment, specifically made for X and Y measurements.
A high resolution of 0.005mm guarantees accurate positioning and measurement for superior machining.

Practical Functionality: Designed to improve accuracy and efficiency in metalworking applications.

Benefits:

LCD Full Touch Screen Interface: Provides a smooth user experience through simple and intuitive control.
The Measurement of Two Axes Capability: Ideal for metal milling equipment, specifically made for X and Y measurements.
A high resolution of 0.005mm guarantees accurate positioning and measurement for superior machining.
Practical Functionality: Designed to improve accuracy and efficiency in metalworking applications.

Rulers that are linear:
KA-600: Perfect for bigger machining jobs, this tool comes in lengths ranging from 1000 to 3000mm.
KA-300: Small tasks and precise work are appropriate for this compact design, which measures between 70 and 1020 mm.

LCD Display Readout: SDS200 model
Functionality: Offers lucid digital readouts for precise linear ruler measurements.

Important Features
Accuracy and Precision: Higher resolution provides finer measurement increments, and the DRO system guarantees accurate and precise measurements.

Display Units: The SDS200 has a digital display unit that allows it to show several measurements at once. To improve usability, users can switch between several axes or functions.

Display Technology: For clear viewing of measurements under a range of lighting conditions, LED or LCD technology is used.

This combination of accuracy and user-friendliness makes it ideal for both professional and amateur metalworking applications.

Package list:

Functions for milling machine:

1. Simple "R" with Midsplit:
 A technique for creating a rounded profile with a mid-split, allowing for smooth transitions in design.

2. Line Hole Positioning Using an Angle:
This method involves setting precise angles for drilling holes along a line, ensuring accurate placement for assembly or fitting.

3. Circle PCD Process for Equally Dividing Bevels:
Utilizes a Pitch Circle Diameter (PCD) to evenly space bevels around a circle, ideal for applications requiring symmetry and balance.

4. Progressive Machining on the Inner Chamber of a Rectangle:
A technique focused on machining the inner chamber of a rectangular component, progressively shaping it for functionality or aesthetics.

These methods enhance precision and efficiency in machining processes, making them essential for various applications in metalworking.

Detail Information:

Pin Description:

All linear scales were tested before delivery. Here is a sample of a scale's test report.
