Common Two-Axis Digital Reading Display For Accurate Metal Processing SDS2MS DRO

SDS2MS DRO Two Axis Digital Reading Display Commonly Used For Precision Metal Processing

Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:

1. Dual axis DRO: This kit allows you to concurrently monitor and control the machine tool's movement along two axes, the X and Y axes in a milling machine, for example. This enables a clear analysis of the equipment's operating status.
2. Magnetic ruler encoder system: The KA linear ruler encoder system makes use of magnetic technology to generate precise and reliable readings. Work progress is tracked and position feedback is given at any moment, reflecting the equipment's location promptly, using the DRO display unit and the magnetic balance mounted on the machine shaft.

3. Broad voltage range: The SDS 2MS DRO kit operates optimally in a broad voltage range between 100V and 240V AC. Its voltage regulation capability guarantees compatibility with various power supply standards. suitable operation of the device is ensured by the suitable voltage.

4. User-friendly interface: The DRO display unit's user interface is simple to operate and typically comprises of a digital display screen and buttons. By using the feature button to move between various measurement data, you may save time.

Capabilities possessed:

1. Convert radius to diameter.
2. Converting mm to inches.
3. Conversion from absolute to relative.
4. The function that splits in half.
5. "R" function is simple.
6. The "R" function is smooth.
7. Positioning the PCD hole around the perimeter.
8. Zero position memory for 200 groups.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

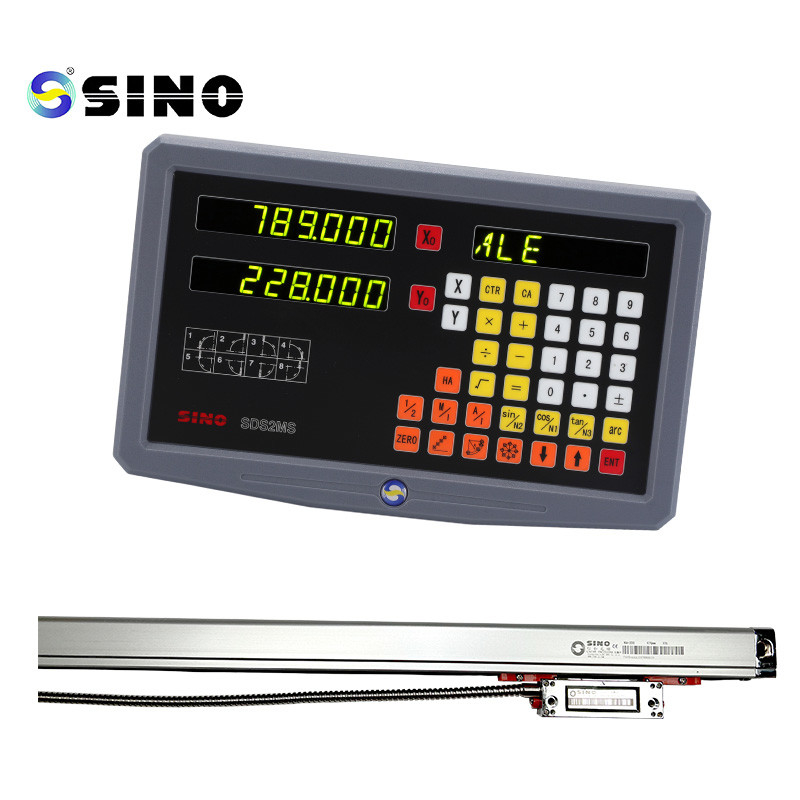

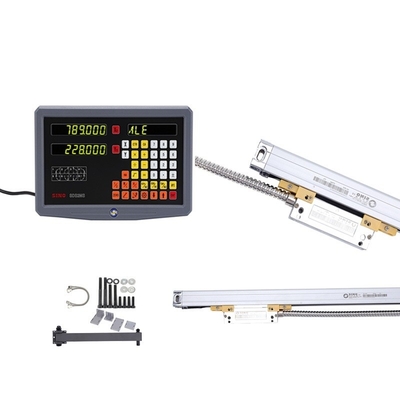

Product image /photos:

​

The rack in the picture is optioned, not standard product.
