2-Axis SDS2MS With High-Precision Linear Glass Scale SINO Digital Readout Display

SINO Digital Readout Display High-Precision 2-Axis SDS2MS With Linear Glass Scale

Overview of Dual Axis SDS 2MS Digital DRO and KA Grating Ruler

1. Dual axis DRO: With this kit, you can simultaneously control and observe how the machine moves along two axes, such as the X and Y axes in the mill. This allows you to evaluate the working progress of the equipment and determine whether the machine tool has reached the expected point.

2. Magnetic ruler encoder system: The KA linear ruler encoder system adopts magnetic technology. By cooperating with the DRO display unit and the magnetic glass scale installed on the machine shaft, a relatively accurate dynamic reading can be obtained. This reading can reflect the position of the equipment in a timely manner. At any time, position feedback can be obtained and readings can be use

3. Broad voltage range: The SDS 2MS DRO kit works well with a voltage range of 100 to 240 volts AC. Every gadget has its own operating voltage, and it can only operate correctly when the necessary voltage is reached.

4. User-friendly interface: With its digital display screen and buttons, the DRO display unit has an intuitive user interface. Using function buttons, users may navigate between various measurement data and choose the relevant results to help tune the gadget.

Capabilities possessed:

1. Convert radius to diameter.

2. Converting mm to inches.

3. Conversion from absolute to relative.

4. The function that splits in half.

5. "R" function is simple.

6. The "R" function is smooth.

7. Positioning the PCD hole around the perimeter.

8. Zero position memory for 200 groups.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: 50 Hz to 60 Hz, AC 85 v to 250 v

2. 15w uses 25 va of electricity.

3. Assign the number to one or two locations.

4. Use eight meters of words and symbols to demonstrate how a signed seven display (two or three axes) outputs data information.

5. Net Weight: 2.9 lbs/1.3 kilogram

6. The EIA-422 open collector output signal, TTL input signal, and easy-to-use interface with programmable controller.

7. Permit the input signal frequency to be higher than 100 KHz.

8. Use 10 microns, 5 microns, 2 microns, 1 mu m, and 0.5 microns to link a resolution.

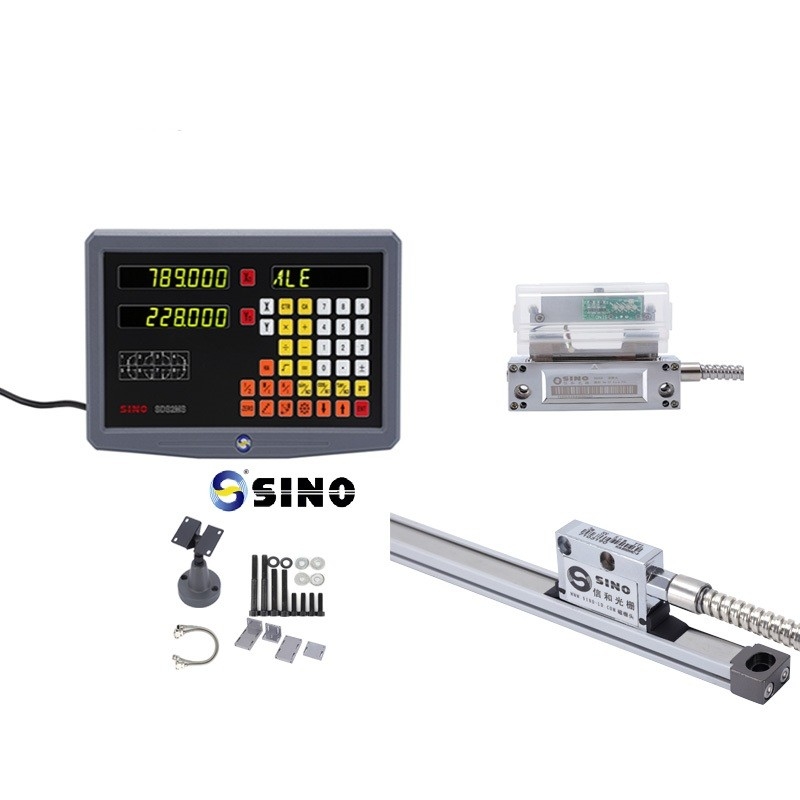

Product image /photos:

​

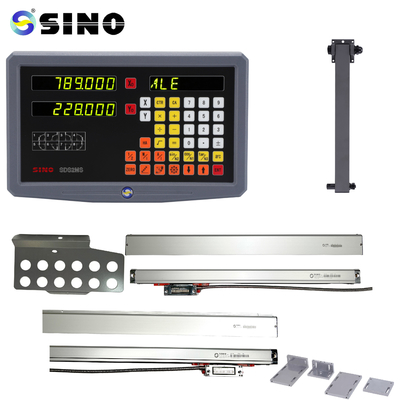

The rack in the picture is optioned, not standard product.
