SINO Linear Scale Glass Sensor KA600-1900mm With 3 Axis DRO Digital Read Out Display Scale For CNC Milling And Lathe

SINO Linear Scale Glass Sensor KA600-1900mm With 3 Axis DRO Digital Read Out Display Scale For CNC Milling And Lathe

Company Introduction

Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.

Product Description:

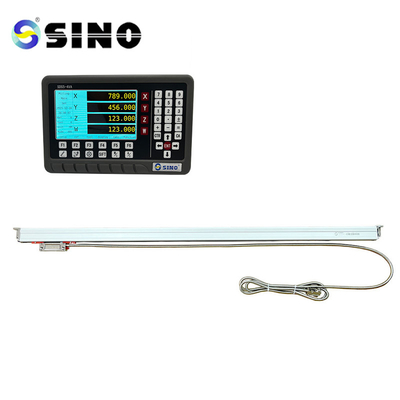

The SINO KA600-1900mm Linear Scale Glass Sensor, paired with a 3-Axis Digital Readout (DRO) Display, offers a powerful and highly accurate system designed for CNC milling and lathe machines. This advanced package includes a high-quality optical linear scale glass sensor from SINO, delivering exceptional precision, along with a user-friendly digital display that ensures precise measurements and control throughout your machining operations. Whether for industrial or workshop settings, this system is designed to enhance the performance and accuracy of your machinery.

Features:

Linear Scale Glass Sensor: The KA600-1900mm linear scale provides precise measurements of the machine’s axis position, offering consistent and repeatable readings for improved machining accuracy.
3-Axis Digital Readout Display: With a 3-axis display, this system enables the simultaneous monitoring and control of multiple machine axes, providing clear numerical readings for easy adjustments.
CNC Compatibility: Designed for seamless integration with CNC milling machines and lathes, this system delivers precise feedback to optimize machining performance.
User-Friendly Interface: The digital display offers an intuitive interface for easy navigation, helping operators set up and use the system effectively.
Increased Efficiency and Accuracy: By incorporating the SINO KA600-1900mm Linear Scale Glass Sensor and DRO system, operators can significantly improve both machining efficiency and accuracy.

Key Features:

High Precision: The system utilizes advanced technology to provide precise and reliable measurements, enhancing the accuracy of your machining operations.
Durable Construction: Housed in a robust metal casing, this DRO system is built to withstand the demands of industrial environments, ensuring long-lasting performance.
KA600-1900mm Linear Scale: The high-precision optical linear scale guarantees consistent and accurate readings across a range of machining applications.
Enhanced Machining Performance: With this complete system, your machinery will operate smoother, achieving better overall efficiency and improved output quality.
Versatile Application: The system is ideal for a variety of industrial and workshop settings, ensuring adaptability across different machining tasks.

Package Includes:

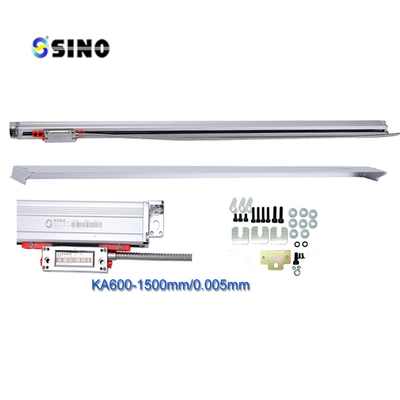

Linear Glass Scale (0–1900mm): A precision linear glass scale, available in a one-piece design, ensuring high durability and performance.
Resolution Options: Available in 0.5/1/5 µm resolutions, offering flexibility for different accuracy needs.
Custom Encoder Lengths: Tailored encoder lengths (1000mm–3000mm) can be provided to meet specific customer requirements.
Product Overview:

The SINO KA600 Linear Scale is a highly accurate measuring device, widely used across industries such as machining, manufacturing, and metrology. It is designed to deliver precise and reliable measurements for linear displacement or position, ensuring high performance in various industrial applications.

Operation of the Absolute Optical Angle Encoder:

The absolute optical angle encoder utilizes a rotating disc or ring that contains optical markings or codes. These optical patterns are detected by sensors, which convert the markings into electrical signals. The signals are then processed to determine the precise angular position, ensuring high accuracy in measurement.

Encoder Markings and Resolution:

The optical markings on the encoder can be represented in various forms, such as binary codes, gray codes, or analog signals. The density of markings determines the resolution, with higher-resolution encoders offering finer angular resolution for improved measurement precision.

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

KA-600 encoder, which is specifically designed for large machine tool, features in

large size and good rigidity. Support may be added to any position of the encoder to

enhance the rigidity and stability. The length is 1000~3000mm.

Detail Information:

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
