100-240V Lathe 3 Axis Digital Readout Kit With Colored TFT Screen
  • name
  • name

100-240V Lathe 3 Axis Digital Readout Kit With Colored TFT Screen

Brand Name: SINO
Model Number: SDS5-4VA, KA-300, KA-500, KA-600
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
3 Axes TFT Lathe Machine DRO Kit
Usage:
3 Axes Manual Lathe
System:
3 Axes DRO SDS5-4VA
Scale Model:
KA-500, KA-300, KA-600
Signal:
RS422 / TTL
Resolution:
0.001mm/0.005mm
DRO Mounting:
On The Electric Box
Meas. Travel:
70mm - 3000mm
Display:
Color TFT Screen
Voltage:
100-240V And 50-60Hz
Supply Ability:
3000 sets per month
Highlight:

100V 3 Axis Digital Readout

,

240V 3 Axis Digital Readout

,

TFT Lathe Digital Readout Kit

Product Description

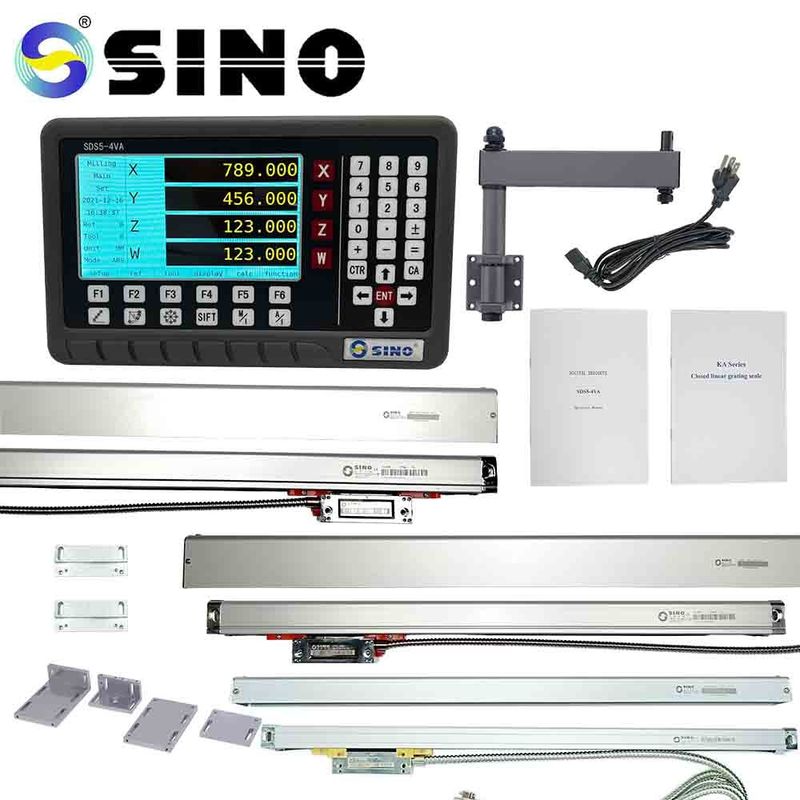

SINO 3 axes metal TFT lathe machine DRO kit SDS5-4VA mounting on electric box three linear scales



This DRO kit is special for 3 axes manual lathe machine positioning.

The TFT screen DRO SDS5-4VA should be mounting on the lathe's electirc box.

The KA-600 scale should be for axis Z, and KA-300 or KA-500 scale should be for axis X and Z1.



The standard cable of the scales is 3M, sometimes extension cable is necessary for large size lathe's installation.

The length of extension cable is 1M to 10M, is the optioned accessory.



100-240V Lathe 3 Axis Digital Readout Kit With Colored TFT Screen 0



Package list:



Item name 3 axis metal TFT display lathe machine DRO kit
Digital Readout (DRO) SDS 200
Linear scale for axis Z KA-300 / KA-600 820-3000mm
Linear scale for axis Z1 KA-500 / KA-300 270-520mm
Linear scale for axis X KA-500 / KA-300 270-520mm
Rack for DRO Rack for lathe
Protection cover for Z scale Type M
Protection cover for Z1 scale Type H / D
Protection cover for X scale Type H / D
Bracket for scales

T-bracket (1set) / KA-500 bracket (2 pcs)
Others Cable / Screws / Manual
