SINO YSV-1160 3 Axis Metal CNC Vertical Milling Tool With DDS Transmission Type

SINO YSV-1160 3 Axis Metal CNC Vertical Milling Tool with DDS Transmission Type

YSV-1160 machine features:

Machining center with extremely high performance
1. By utilizing Taiwan's frequency converter tool magazine, the tool change time is reduced to 1.4S, significantly enhancing processing efficiency;
2. Fast and accurate positioning, strong torque production, and all three axes are standard;

3. The spindle motor is outfitted with an 11–15KW high–torque generalized motor as standard, and the spindle torque is significantly increased when compared to other brands of the same model, making it particularly suitable for heavy cutting.

4. The machine tool parts come from a well-known brand of a renowned factory, and they have the most cutting-edge configuration in the industry.

YSV-1160 optical machine features:

1. The German Rexroth line rail is used, and its width is 45mm. 2. The Y-axis has an extremely wide span of 745mm.
3. Strong stiffness provides effective cutting and is supported by 6 sliding seats on the X axis;
4. The three-axis uses PMI outer diameter 40mm C3 grade screws, and the three-axis uses NSK original bearing (3062), 3+2 mode, pre-tensioning treatment to prevent thermal displacement;
5. High-rigidity BBT spindle with 150mm outer diameter and ring spray design;
6. Use an original Taiwanese ultra-high-speed cutting cylinder with a cutting time of 0.28S.
7. The machine tool's bed is built of precise HT300 high-grade cast iron.

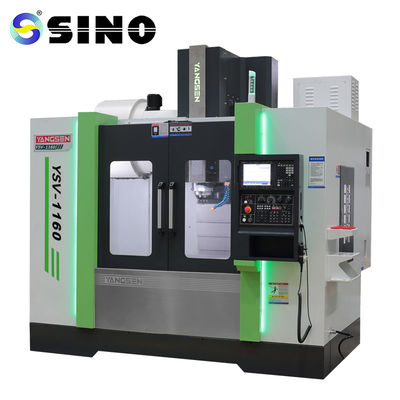

Product image /photos:

Installation, commissioning, acceptance, and training

1. Installation and commissioning: Our service engineer will visit the customer's plant as soon as the machine tool is delivered to do installation and commissioning as well as on-site training.

2. Customers have the option of sending operators to our company for a week or so of initial training, after which our firm will conduct on-site training at the customer's location during installation and commissioning.

3. Acceptance: Accuracy acceptance examines the items that can be examined at the customer's location and the inspection items that do not satisfy the inspection requirements, such as positioning accuracy, spindle taper hole accuracy inspection stick test, etc., in accordance with the ex-factory accuracy inspection table provided by the supplier.

For inspection and acceptance, the buyer will dispatch workers to the supplier's factory.

After-sales service concept

1. Pre-sales service: Janssen's sales representatives will present clients with the finest processing alternatives, including tool and fixture selection, option configuration, and machine tool selection.

administration of lubricating oil, cutting fluids, and other services. offering turnkey projects in addition.
2. Maintenance response time: We have a service crew of up to 26 people and a fully working service van at our disposal. As soon as we receive the user's failure notification, we will respond within two hours.

3. Parts inventory: Janssen has a specialized production facility and a full stock of parts in Xiamen. Each office maintains stockpiles of frequently used parts to provide users with the fastest repair components.

4. Maintenance of machine tools: All machine tools that are covered by a warranty period receive free maintenance services, and machine tools that are not covered by a warranty can pay affordable and fair fees for maintenance services. Plan the equipment management and maintenance process based on customer needs.

5. Maintenance fees after the warranty has expired: The standard for billing is made apparent at the actual cost, only the cost is incurred, and the user is treated with the concepts of openness, fairness, and fairness.
6. Special old user service department: closely monitor machine tool use and promptly address maintenance problems.
7. Maintenance oversight: The general manager also functions as the after-sales service department's director, monitoring the maintenance services' quality in real time and defending clients' rights.
