Product Details:
|
| Item Name: | SINO KA500 Optical Encoder | Application: | Glass Linear Scale With Digital Readout |
|---|---|---|---|
| Usage: | Scaling Position Sensor | Customized Length: | 70mm/120mm/170mm/220mm |
| Length: | 320mm/370mm/420mm/470mm | Material: | Aluminum |
| Function: | EDM/Lathe/Grinding/Boring Machine | Resolution: | 0.5/1/5 μm |
| High Light: | 120mm Optical Encoder Glass Linear Scale,5um Optical Encoder Glass Linear Scale,Digital Readout Glass Linear Encoder |
||

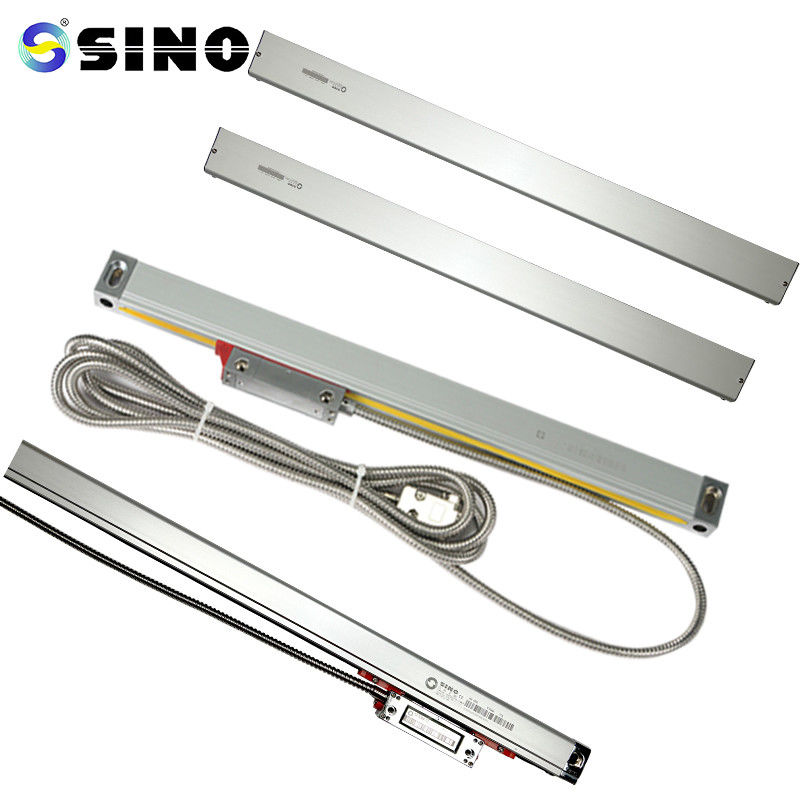

5um/1um/0.5um SINO KA500-120mm Optical Encoder Glass Linear Scale With Digital Readout System
Package contains:
Linear Glass Scale, KA500-120mm, 1 piece
Available Resolution: 0.5/1/5 m.
According to the requirements of the users, customized encoder lengths (L0) can be offered.(Length:70-470mm)
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA500-70 | 70 | 172 | 182 | KA500-320 | 320 | 422 | 432 |
| KA500-120 | 120 | 222 | 232 | KA500-370 | 370 | 472 | 482 |
| KA500-170 | 170 | 272 | 282 | KA500-420 | 420 | 522 | 532 |
| KA500-220 | 220 | 322 | 332 | KA500-470 | 470 | 572 | 582 |
| KA500-270 | 270 | 372 | 382 |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Operating Instructions
Reading the General Description, Safety Considerations, and
everything in Chapter 1 3.
2. In addition to the General Description, Safety Considerations, and all the data in
The installation, testing, and repair professionals must rigorously adhere to Chapters 1 through 3.
understand every paragraph in Chapters 4-5.
3. These operating guidelines only apply to SINO's KA series of integrated circuits.
it is the linear encoder.
Please read the safety advice listed below for further information. It includes crucial information regarding
Make safe usage of your linear encoder.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
