|Item Name:||SINO KA600 5um DRO Linear Scale Optical Encoder With 1000-3000mm Length||Application:||3 Axis Digital Readout Systems DRO|
|Usage:||Position Sensor Scaling||Customized Length:||1000mm/1100mm/1200mm/1300mm/1400mm/1500mm|
|Function:||EDM/Lathe/Grinding/Boring Machine/Milling Machine||Resolution:||0.5/1/5 μm|
5um DRO Linear Scale,
SINO KA600 DRO Linear Scale,
3000mm Length Linear Optical Encoder

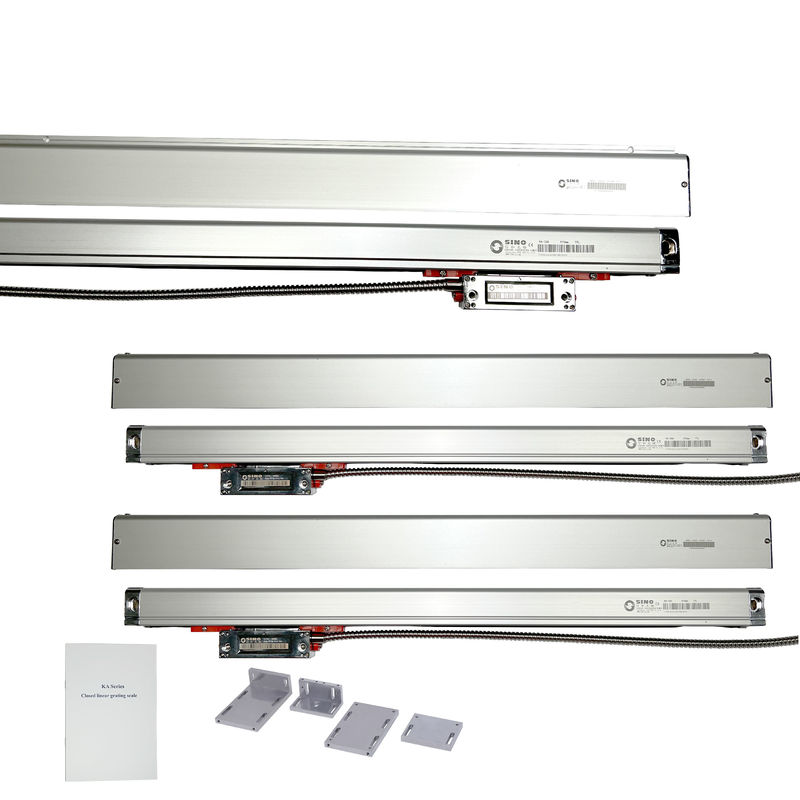

SINO KA600-1700mm 5um DRO Linear Scale Optical Encoder 3 Axis Digital Readout Systems
Introducing the SINO KA600-1700mm 5um DRO Linear Scale Optical Encoder, a state-of-the-art digital readout system designed for 3-axis operations. This advanced system offers exceptional precision, reliability, and ease of use, making it a must-have tool for machining tasks.
1️⃣ High-Resolution Measurement: The 5μm linear scale optical encoder ensures accurate and precise measurements, enabling superior machining results.
2️⃣ Robust Construction: Built to withstand demanding industrial environments, the SINO KA600 guarantees durability and long-lasting performance.
3️⃣ User-Friendly Interface: The intuitive interface and large display make operation effortless, allowing for easy monitoring of machining processes.
4️⃣ Enhanced Functionality: The digital readout system offers features such as axis selection, zeroing functions, and metric/imperial unit switching for added convenience.
5️⃣ Versatile Application: Suitable for lathe and milling machines, the SINO KA600-1700mm 5um DRO Linear Scale Optical Encoder enhances productivity and accuracy in various machining tasks.
Mounting: Securely attach the linear scale optical encoder to the lathe or milling machine using the provided mounting brackets.
Connection: Connect the encoder to the digital readout display unit using the included cables.
Power On: Turn on the digital readout display unit and ensure it is properly calibrated.
Axis Selection: Choose the desired axis (X, Y, or Z) on the display unit to monitor and measure.
Measurement: The digital readout system will display accurate measurements in either metric or imperial units based on your selection.
Zeroing: Utilize the zeroing functions to establish reference points and reset measurements as needed.
Fine-Tuning: Make precise adjustments to your machining operations based on the real-time measurements provided by the digital readout system.
linear glass scale, KA500-1700mm, one piece.
There is a resolution of 0.5/1/5um.
Based on the requirements of the customers, customized encoder lengths (L0) can be offered.(Length:1000-3000mm)
Resolution: The resolution of an absolute optical angle encoder is determined by the number of markings or codes on the disc. Higher-resolution encoders have more markings and provide finer angular resolution. The resolution is typically specified in bits or counts per revolution (CPR).
Accuracy and Precision: Absolute optical angle encoders are known for their high accuracy and precision. The accuracy is typically specified as the maximum deviation from the true position, while the precision refers to the ability to resolve small angular changes.
Applications: Absolute optical angle encoders find applications in various industries and systems that require precise angular positioning. They are commonly used in robotics, CNC machines, rotary tables, goniometers, telescope positioning, and other automated systems.
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
KA-600 encoder, which is specifically designed for large machine tool, features in
large size and good rigidity. Support may be added to any position of the encoder to
enhance the rigidity and stability. The length is 1000~3000mm.
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
