Lathe Machine 2 3 Axis Digital Readout Encoder With 1μM Linear Scale For SINO KA600-2100mm DRO

High Precision Lathe SINO KA600-2100mm 1μm Linear Scale DRO 2/3 Axis Digital Readout Encoder

Lathe Machine 2/3 Axis Digital Readout Encoder With 1μM Linear Scale For SINO KA600-2100mm DRO

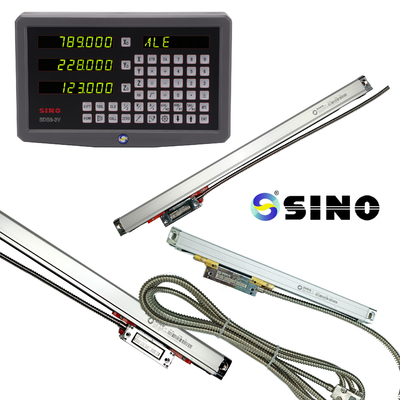

The High Precision Lathe 1μM Linear Scale Digital Readout (DRO) for Lathe, specifically the SINO KA600-2100mm model, is a cutting-edge solution designed to enhance precision and accuracy in lathe machining operations. This advanced DRO system incorporates high-resolution linear scales and powerful encoders, providing reliable and real-time measurements for improved machining outcomes.

Key Features:

1️⃣ High Precision: With a measurement accuracy of 1μm (micrometer), the SINO KA600-2100mm ensures precise positioning and accurate measurements during lathe operations.
2️⃣ Linear Scale Encoder: The encoder provides real-time position feedback, allowing for precise control and monitoring of lathe movements.
3️⃣ Digital Readout Display: The digital readout display presents clear and accurate measurements, improving efficiency and reducing errors in machining tasks.
4️⃣ Two/Three Axis Capability: Equipped with the ability to monitor and control two or three axes simultaneously, enabling precise movements and enhanced productivity.
5️⃣ User-Friendly Interface: The DRO system features a user-friendly interface for easy setup, customization, and intuitive operation.

Usage: Install the linear scale encoder on the lathe machine's axis, connect it to the DRO unit, and power it on. The digital display will show real-time measurements for precise control over lathe movements.

Usage:

Mount the linear scale encoders on the machine axes, connect them to the DRO unit, and power it on. The digital display will show real-time measurements for each axis, enabling precise control over machine movements.

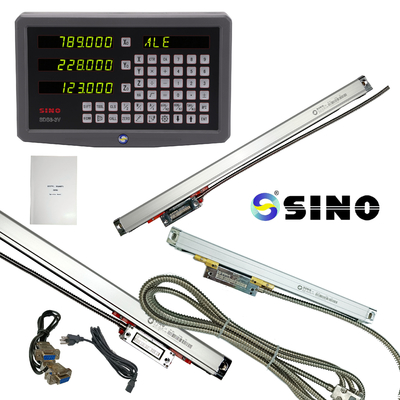

Package includes:

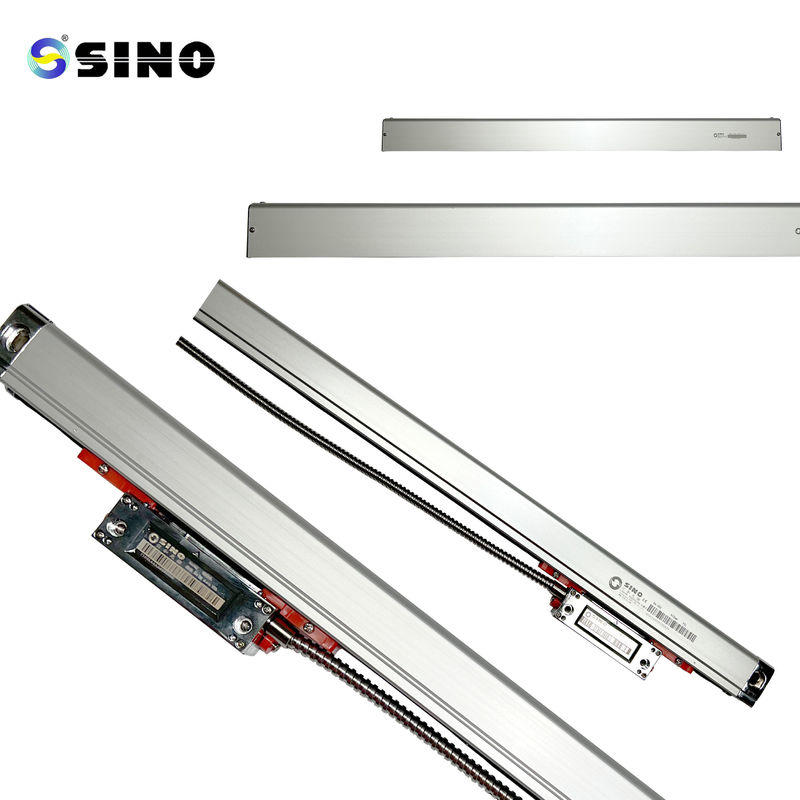

One-piece linear glass scale, KA600-2100mm.

The resolution is offered in 0.5/1/5um.

Customers' needs might be taken into consideration while providing customized encoder lengths (L0).(Dimensions: 1000-3000 mm)

The encoder has several optical sensors or detectors positioned all around the disk or ring. These sensors detect the optical markers as the disc rotates and convert them into electrical impulses.

Code Patterns: The optical markings on the encoder disc might take on various shapes based on the encoding technique used. Binary codes that are frequently utilized are natural binary codes and gray codes. Gray codes are widely used because they reduce the likelihood of errors at these transitional sites by ensuring that only one bit changes between adjacent regions.

The quantity of marks or codes on the disk determines the resolution of an absolute optical angle encoder. More markings and greater angular resolution are provided by encoders with higher resolution. In most cases, the resolution is expressed in bits or counts per revolution (CPR).

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

KA-600 encoder, which is specifically designed for large machine tool, features in

large size and good rigidity. Support may be added to any position of the encoder to

enhance the rigidity and stability. The length is 1000~3000mm.

Detail Information:

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
