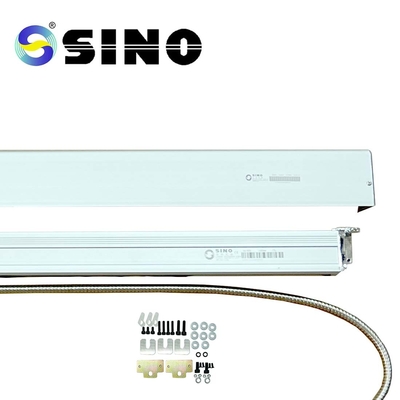

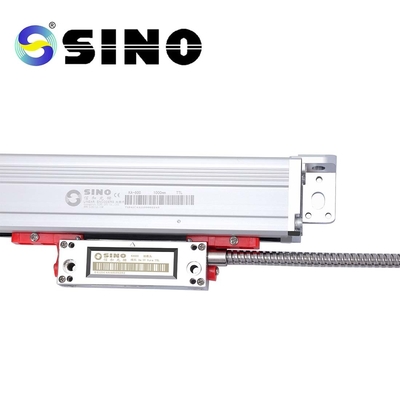

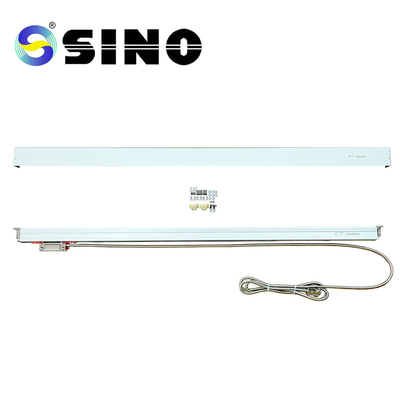

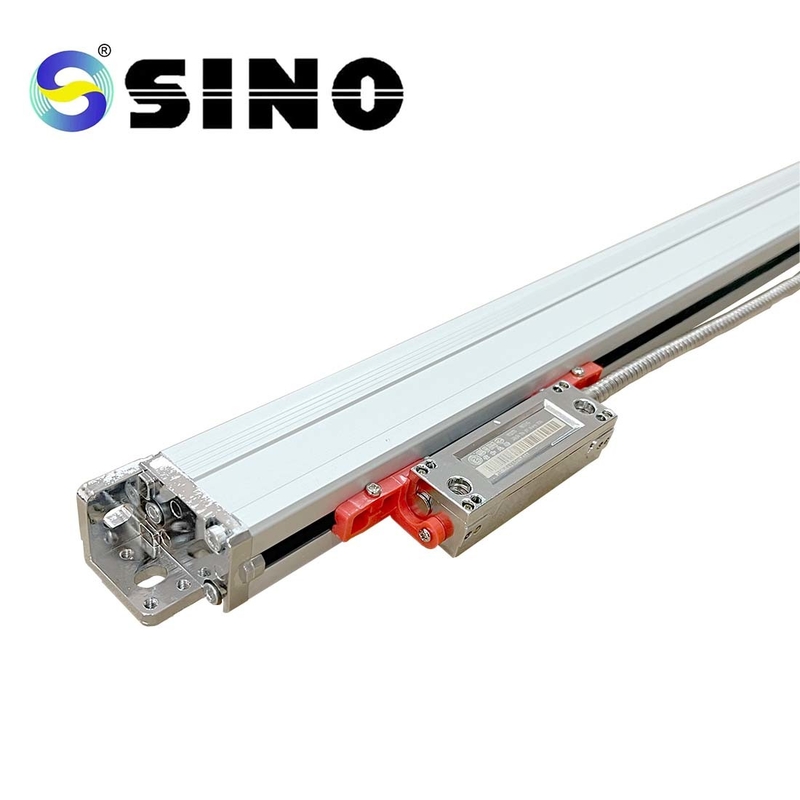

SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines

SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines
SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines

Large Image :  SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: KA600-1200mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 30000 sets per month

SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines

Description
Item Name: SINO KA600-1200mm Professional Linear Glass Scales Linear Encoder For Milling Machines Application: Linear Encoder Digital Readout Systems DRO
Usage: Position Sensor Scaling Resolution: 0.5/1/5 μm
Function: EDM/Lathe/Grinding/Boring Machine/Milling Machine Customized Length: 1000mm/1100mm/1200mm/1300mm/1400mm/1500mm1600mm/1700mm/1800mm
Length: 1600mm/1700mm/1800mm/1900mm/2000mm2100mm/2200mm/2300mm/2400mm/2500mm Material: Aluminum/Metal
High Light:

SINO KA600-1200mm Linear Glass Scales

,

Linear Glass Scales For Milling Machines

,

5μm Linear Glass Scales

SINO KA600-1200mm Professional Linear Glass Scales Linear Encoder For Milling Machines





Product Description:


The SINO KA600-1200mm Professional Glass Linear Encoder is a high-precision measuring device designed for milling machines. It enables accurate and reliable measurement of linear movements along the X, Y, or Z axis, ensuring precise positioning and control during milling operations.



Key Features:



Glass Linear Encoder: The KA600-1200mm encoder is constructed with a durable glass scale that provides excellent resistance to wear, temperature variations, and contaminants. The glass scale ensures reliable and consistent measurement performance, even in demanding machining environments.
High Precision: This encoder offers exceptional precision, with resolution capabilities down to micrometer levels. It allows for accurate measurement of small incremental movements, supporting the production of precision components in milling applications.
Long Measuring Range: With a measuring range of 1200mm, the KA600-1200mm encoder can accommodate a wide range of milling machines, including larger-sized machines. It covers a substantial distance along the axis, enabling precise measurements across the entire working area.
Easy Installation: The encoder is designed for easy installation on milling machines. It typically mounts on the machine's moving components, such as the spindle or the table, allowing it to accurately measure their linear movements. Installation procedures are user-friendly, minimizing setup time.
TTL Output Signal: The SINO KA600-1200mm encoder utilizes the TTL (Transistor-Transistor Logic) output signal, ensuring compatibility with a wide range of digital readout (DRO) systems. The TTL signal is commonly used in industrial automation and offers reliable and noise-resistant data transmission.
Robust Construction: The encoder is built with robust materials and features a sealed housing, protecting it from dust, debris, and coolant liquids commonly encountered during milling operations. Its durable construction ensures long-lasting performance in demanding industrial environments.



Package includes:



The SINO KA600 linear scale is a precision measuring device commonly used in various industries, including machining, manufacturing, and metrology. It is designed to provide accurate and reliable measurements of linear displacement or position.



The SINO KA600 linear scale is known for its high precision, durability, and resistance to environmental factors such as dust, temperature variations, and vibrations. It is commonly used in conjunction with milling machines, lathes, coordinate measuring machines (CMMs), and other industrial equipment that require precise positioning or dimensional measurements.



Model L0 L1 L2 Model L0 L1 L2
KA600-1000 1000 1150 1170 KA600-2100 2100 2250 2270
KA600-1100 1100 1250 1270 KA600-2200 2200 2350 2370
KA600-1200 1200 1350 1370 KA600-2300 2300 2450 2470
KA600-1300 1300 1450 1470 KA600-2400 2400 2550 2570
KA600-1400 1400 1550 1570 KA600-2500 2500 2650 2670
KA600-1500 1500 1650 1670 KA600-2600 2600 2750 2770
KA600-1600 1600 1750 1770 KA600-2700 2700 2850 2870
KA600-1700 1700 1850 1870 KA600-2800 2800 2950 2970
KA600-1800 1800 1950 1970 KA600-2900 2900 3050 3070
KA600-1900 1900 2050 2070 KA600-3000 3000 3150 3170
KA600-2000 2000 2150 2170




L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension



The scale graduations are typically evenly spaced and represent a specific measurement increment, such as millimeters or inches. As the read head moves along the scale, the photoelectric sensor detects the graduations, and the sensor outputs electrical signals that indicate the position. These signals can be interpreted by a digital display unit or a computerized system to provide real-time position feedback.


Detail Information:



SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines 0





All linear scales will be tested before delivery. Here is a sample of a scale's testing report.



SINO KA600-1200mm Linear Glass Scales Linear Encoder For Milling Machines 1
