Single Spindle SINO Vertical Machine Center 3 Axis CNC Milling Cutting Machine

SINO Vertical Machine Center 3 Axis High Accuracy CNC Milling Machine Cutting Machine

Machine features:

Ultra High Performance Machining Center
1. The Taiwan frequency conversion tool magazine is adopted, the tool change time is shortened to 1.4S, and the knife arm is controlled by the frequency converter, which effectively improves the product processing efficiency;
2. The Z-axis is equipped with a 3KW motor as standard, a servo motor one level larger than the same model of other brands, with high torque output and fast and accurate positioning;
3. The spindle motor is equipped with βii8/12000 high-torque generalized motor, and the spindle torque is significantly improved compared with other brands of the same model, which is very suitable for heavy cutting;
4. The machine tool parts belong to the famous brand of famous factory, and the top configuration in the industry.

Optomechanical Features:

1. Adopt German Rexroth/THK line rail, and the width of Y/Z line rail is up to 45mm;
2. The Y-axis stroke is extended, up to 550mm, and the width of the worktable is widened to 550mm;
3. The X-axis sliding seat has a super-large span, and the "herringbone"-shaped column design is as stable as Mount Tai;
4. The three-axis adopts C3 grade screw, and the three-axis adopts NSK original bearing (3062), 3+2 mode, pre-tensioning treatment to prevent thermal displacement;
5. High rigidity BBT40 spindle with outer diameter of 150mm, ring spray design;
6. Adopt Taiwan original ultra-high-speed cutting cylinder, the cutting time can reach 0.28S;
7. The bed of the machine tool is made of precision HT300 high-grade cast iron.

Standard Accessories:

1. Semi-Enclosed Guard * Swiveling Control Box

2. Auto Lubrication System * Low Energy working light

3. Volumetric Type Automatic lubricator * Transformer

4. RS 232 code * Spindle oil Coolant

5. Air Gun * Auto power off

6. Rigid tapper * Tool Box

7. Leveling Bolts and Leveling Block * Operation Manual

8. Heat Exchange for Electric Cabinet * Handwheel

9. Mechanical oil coolant separator

Optional parts

1. CTS

2. Spindle Taper ( HSK/ISO/CAT/BT )

3. Spindle RPM

4. Automatic tool changer

5. Extended Head

6. Controller option ( SINUMERIK 840D )

7. ZF Gear box or Full Gear

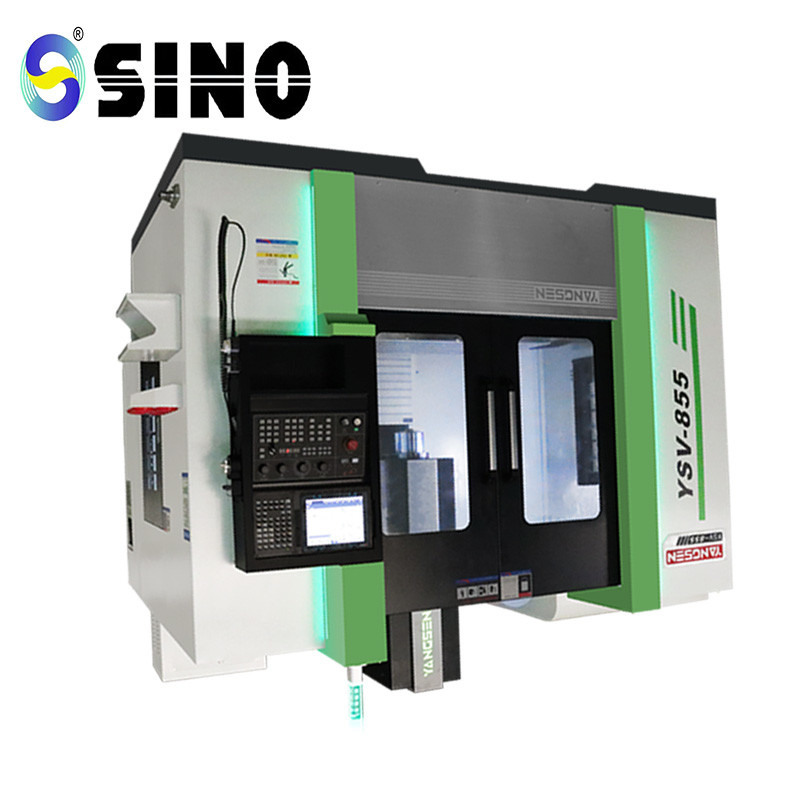

Product image /photos:

Installation, commissioning, training and acceptance

1. Installation and commissioning: After the machine tool arrives at the customer's factory, our service engineer will go to the customer's factory in time to carry out installation and commissioning and on-site training. 2. Customers can choose to send operators to our company to be responsible for the preliminary training for about a week, and then our company will conduct on-site training at the customer's place during installation and commissioning. 3. Acceptance: Accuracy acceptance, according to the ex-factory accuracy inspection table provided by the supplier, inspect the items that can be inspected at the customer's place, and inspect the inspection items that do not meet the inspection conditions, such as positioning accuracy, spindle taper hole accuracy inspection stick test Etc., no testing at the demand side, or negotiation between the two parties

The buyer will send personnel to the supplier's factory for inspection and acceptance.

After-sales service concept
1. Pre-sales service: Janssen's sales team will provide users with the best processing solutions, including machine tool selection, option configuration, tool and fixture selection,
Lubricating oil, cutting fluid management and other series of services. And can provide turnkey projects.
2. Maintenance response time: Our company has a service team of up to 26 people and is equipped with a complete service vehicle. After receiving the user's notification of failure, we will respond within 2 hours. 3. Parts inventory: Janssen has a special production workshop and parts inventory in Xiamen, with strong strength and complete inventory. There are commonly used parts inventories in each office to provide users with the fastest repair parts. 4. Machine tool maintenance: All machine tools within the warranty period enjoy free maintenance services, and machine tools outside the warranty period can purchase maintenance services at economical and reasonable prices. And according to customer needs, plan equipment management and maintenance process.
5. Maintenance charges after the warranty period: The charging standard is clearly stated at the actual price, only the cost is charged, and the user is served with the concept of openness, fairness and fairness.
6. Special old user service department: closely track the use of machine tools, and deal with maintenance complaints in a timely manner.
7. Maintenance supervision: the general manager also serves as the director of the after-sales service department, supervises the quality of maintenance services in real time, and protects the rights of customers.

Machine working conditions

1. Three-phase AC power supply: 380V±10%, -15%; 50Hz±1Hz
2. Ambient temperature: 8～40Cº
3. Relative humidity: ≤80%
4. Air source pressure: 0.6～0.8 MPA
