SINO SDS2-3VA 3 Axis DRO Digital Readout System With KA300 Glass Linear Ruler Taper Measurement Tool Collection

SINO SDS2-3VA 3 Axis Digital Readout Meter KA300 Glass Linear Ruler TTL/RS422 Signal​

SINO SDS2-3VA 3 Axis DRO Digital Readout System With KA300 Glass Linear Ruler, Taper Measurement & Tool Collection

These features make the graphics function easier to use. It is the first plant in China to use a 16- and 32-bit calculator in a DRO system, and the input frequency of the DRO system, up to 5MHZ with A/B, is among the highest in the world.

The SINO SDS2-3VA is a 3-axis digital readout meter that is compatible with the KA300 glass linear ruler and supports the TTL/RS422 signal. This digital readout meter is designed to accurately display and measure the position of machine tool axes in various applications. The KA300 glass linear ruler provides precise and reliable position feedback, while the TTL/RS422 signal ensures fast and reliable communication between the ruler and the readout meter.

Accurate Positioning: The SINO SDS2-3VA digital readout meter ensures precise measurement and positioning of the machine tool axes, providing accurate results for machining operations.
KA300 Glass Linear Ruler: The KA300 glass linear ruler offers exceptional durability and stability, enabling reliable position feedback even in demanding industrial environments.
TTL/RS422 Signal Compatibility: The digital readout meter supports both TTL and RS422 signals, ensuring fast and reliable communication with the KA300 glass linear ruler.
User-Friendly Interface: The digital readout meter features an intuitive interface with clear numeric displays, making it easy to read and interpret position information.
Flexible Configuration: The system supports three axes, allowing users to measure and monitor the position of multiple machine tool axes simultaneously.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (applicable to spark testers and milling machines)

Function for machining involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA often includes preset functions that allow the user to store and recall specific measurement values. This feature is particularly useful for repetitive machining tasks where precise measurements need to be repeated.

Error Compensation: The system may offer error compensation features to account for machine tool inaccuracies or measurement errors. By calibrating the system and applying compensation values, it can enhance the overall accuracy of measurements.

Data Interface: Some versions of the SDS2-3VA digital readout system may have data interfaces, such as RS-232 or USB, that allow for data transfer and communication with external devices. This can enable connectivity with computer systems or data logging for quality control purposes.

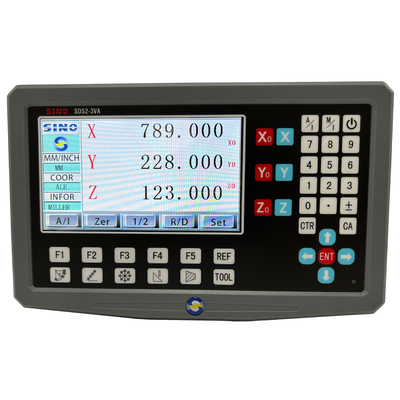

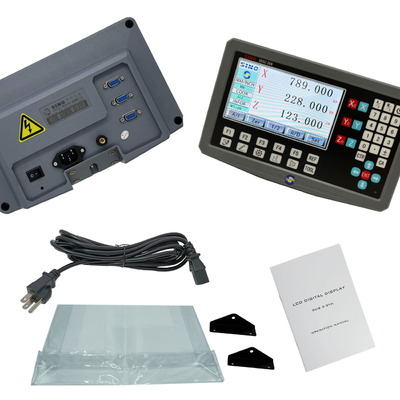

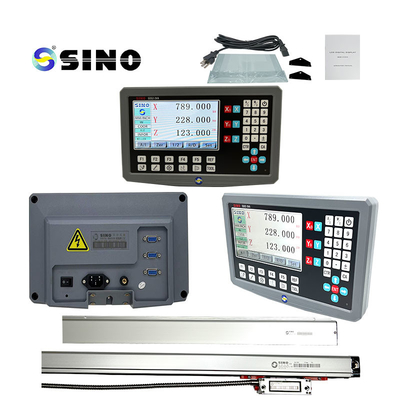

Product image /photos:

The rack in the picture is optioned, not standard product.
