Product Details:
|
Name: | Sino SDS2-3VA Display Digital Readout Meter With Linear Ruler | Number Of Axis: | Digital Readout Kits With 3 Axis Digital Readout Systems |
---|---|---|---|
Color: | Grey | Signal: | TTL/RS422 Digital Readout System |
Voltage: | Digital Readout Kits: AC100-240V / 50-60Hz | Suitable For: | Milling Machine, Grinding Machine, EDM Machine |
Resolution: | 1um,5um,0.5um | Material: | Metal |
Highlight: | 1um Resolution SINO DRO,SINO DRO For Milling Machines |
SINO 3 Axis DRO Digital Readout TTL Input Signal For Milling Machine Lathe
The graphics function is made easier to utilize by these characteristics. It is the first facility in China to use a DRO system with a 16- and 32-bit calculator, and it has one of the highest input frequencies in the world, reaching up to 5 MHZ with A/B.
Features:
3 Axis Capability: The SINO DRO supports up to 3 axes, allowing you to monitor and measure the position of multiple machine axes simultaneously.
Digital Readout Unit: The DRO unit displays precise numerical readings of the machine axes, providing real-time measurements.
TTL Input Signals: The DRO system uses TTL (Transistor-Transistor Logic) input signals, which are commonly used in industrial applications and ensure reliable and accurate data transmission.
Compatibility: The system is designed to work with milling machines and lathes, making it suitable for various machining applications.
User-Friendly Interface: The DRO unit features an intuitive interface that is easy to understand and operate.
Usage:
Installation: Install the DRO unit in a convenient location near your milling machine or lathe for easy reading and access.
Connection: Connect the DRO unit to the TTL input signals of your machine axes using the provided cables and connectors.
Calibration: Perform the necessary calibration procedures to ensure accurate measurements. This may involve zeroing the scales and setting reference points.
Configuration: Set up the DRO unit according to your specific machine and application requirements. This may include selecting the appropriate measurement units (metric or imperial) and configuring other parameters.
Operation: Start the machine and monitor the position readings displayed on the DRO unit as you move the axes. The DRO unit will provide real-time measurements, allowing you to precisely position your workpiece or perform accurate machining operations
SDS2-3VA DRO System Features:
The LCD display works with all Chinese optical linear glass scales and is widely used in lathe, drilling, boring, and milling equipment.
Because it can switch between Chinese and English on a single display, consumers from a variety of countries will find lathes and milling machines to be more useful.
Restitution for Linear Inaccuracies
Keep in Mind for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
Specifications of SINO SDS2-3VA digital readout system + linear scale encoder
A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS2-3VA.
This three-axis type supports the connection of up to three linear encoders. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.
strong die cast casing with a front panel membrane that is both haptic and long-lasting.
large, easily readable LCD screen.
PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.

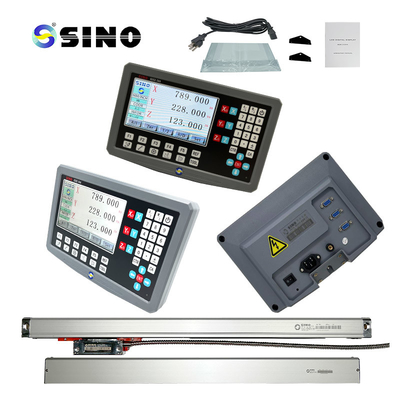

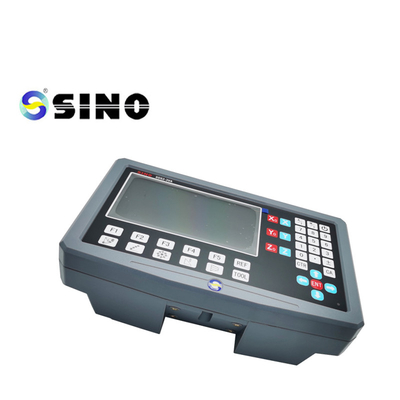

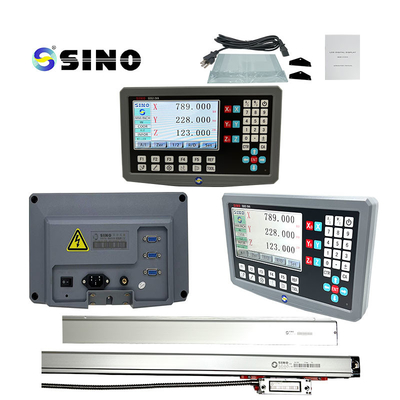

1 PC | 3 Axis LED digital readout SDS2-3Va |
1 PC | Protection cover |
1 PC | Instruction Manual (English) |
1 PC | Cable |
