RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear

RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear
RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear

Large Image :  RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS2-3VA, KA300, Ka500, KA600
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 pcs per month

RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear

Description
Name: 3 Axis Digital Readout For Lathe Mill With Tool Counter, Optical Encoder & Grating Ruler Linear Absolute Encoder Number Of Axis: Ka500 Ka300 Ruler Scale 3 Axis DRO Measuring Machine
Color: Grey/black-Colors Signal: Digital Readout: TTL / RS422
Voltage: Digital Readout: AC100-240V / 50-60Hz Suitable For: Milling Machine, Boring Machine
Resolution: 1um,5um,0.5um Material: Metal
High Light:

RS422 3 Axis Digital Readout

,

Optical 3 Axis Digital Readout

Lathe Mill SDS2-3VA Tool Counter Optical Encoder Grating Ruler Linear Absolute Encoder

3 Axis Digital Readout For Lathe Mill With Tool Counter, Optical Encoder & Grating Ruler Linear Absolute Encoder



Product Description:


The Lathe Mill SDS2-3VA Tool Counter Optical Encoder is an essential component for accurately measuring and monitoring the movements of lathe and milling machines. It features a highly precise grating ruler linear absolute encoder, ensuring reliable and precise measurements. This encoder is designed to enhance machining operations and improve overall productivity in the manufacturing industry.



Key Features:



Optical Encoder Technology: The SDS2-3VA Tool Counter utilizes advanced optical encoder technology to achieve high precision and accuracy in measurements.
Grating Ruler Linear Absolute Encoder: The encoder incorporates a grating ruler linear absolute encoder, which provides reliable and absolute positional information for precise measurements.
Tool Counter Function: With the tool counter feature, the encoder facilitates tool management, allowing easy tracking of tool usage and enhancing workflow efficiency.
Easy Installation: The encoder is designed for easy installation onto lathe and milling machines, ensuring minimal downtime during setup.
Durable and Reliable: It is constructed with durability in mind, capable of withstanding the rigorous demands of machining operations.


Usage:


The Lathe Mill SDS2-3VA Tool Counter Optical Encoder is utilized for precise measurement and monitoring of lathe and milling machine movements. It enables accurate positioning, tool management, and real-time data feedback, optimizing machining processes and improving overall productivity.



Advantages



-Support five languages: Chinese, English, Spanish, German, and French

-Easy to use, basic system

- Large LCD screen, excellent clarity

-The DRO compatible with all linear scales manufactured in China



SDS2-3VA LCD DRO Features:



Measurement Repeatability: With its preset functions, the SDS2-3VA allows for the storage and recall of specific measurement values. This is particularly useful for repetitive machining tasks, where the system can quickly and accurately reproduce previously measured dimensions, improving efficiency and consistency.
Positioning and Dimensional Control: The SDS2-3VA can be used to accurately position the cutting tool or workpiece on a milling machine, lathe, or other machine tools. It provides real-time measurements of the tool's position along the X, Y, and Z axes, ensuring precise alignment and dimensional control.



Mainly digital display Functions



Power down c/w Interrupt settings memory & Console sleep mode



Linear compensation, compensate linear reading error



Metric & Imperial display Absolute & Incremental co-ordinates



Linear & segmented compensation program to match scales to console



Advanced calculator including trigonometric functions



200 position zero memory & 200 Tool zero offset positions

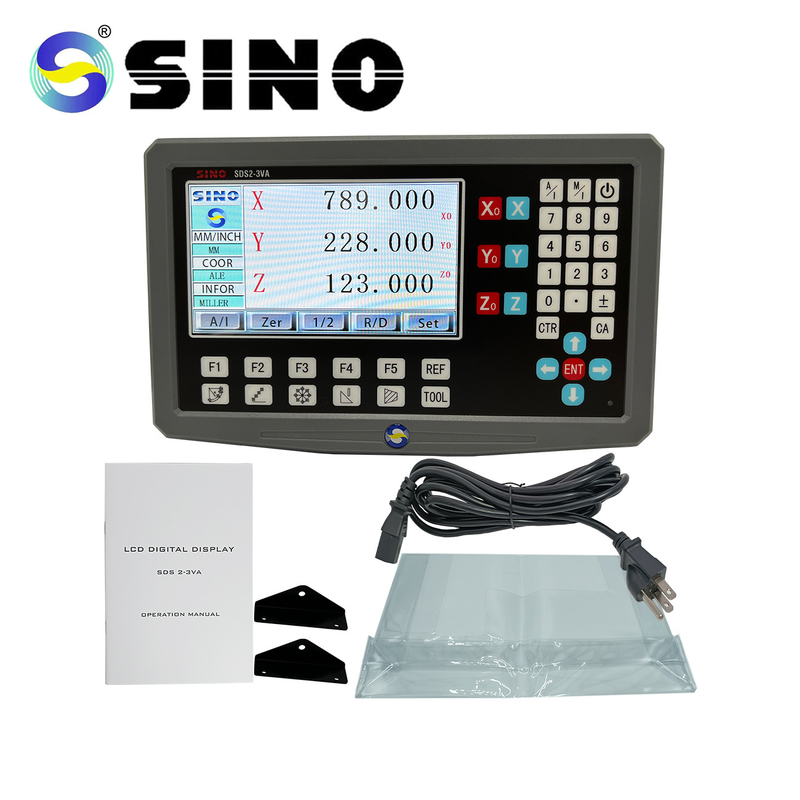

Packaging List :

1 PC 3 Axis LED digital readout SDS2-3Va
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

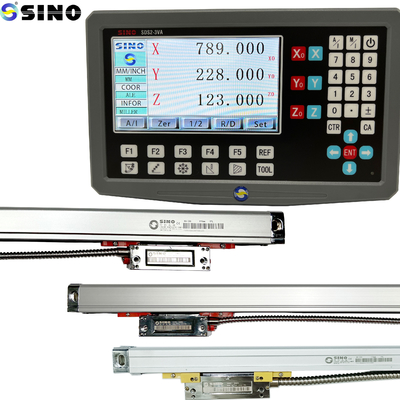

RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear 0



RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear 1

The rack in the picture is optioned, not standard product.



RS422 3 Axis Digital Readout With Tool Counter Optical Encoder Grating Ruler Linear 2
