Product Details:
|
Name: | SINO 3 Axis DRO Digital Readout W/ TTL Input Signal For Milling Machine Lathe | Number Of Axis: | Digital Readout Kits With 3 Axis Digital Readout Systems |
---|---|---|---|
Color: | Grey/black-Colors | Signal: | TTL/RS422 Digital Readout System |
Voltage: | Digital Readout Kits: AC100-240V / 50-60Hz | Suitable For: | Milling Machine, Grinding Machine, EDM Machine |
Resolution: | 1um,5um,0.5um | Material: | Metal |
Highlight: | Grey 3 Axis Digital Readout,3 Axis Digital Readout For Lathe |
SINO 3 Axis DRO Digital Readout TTL Input Signal For Milling Machine Lathe
Product Description:
The 1um SINO DRO (Digital Readout) is a precision measurement device designed for milling machines. It offers a high resolution of 1 micron, allowing for precise measurements and control over milling operations. The DRO system features an intuitive user-friendly interface and configurable settings for enhanced usability and customization.
Key Features:
High Resolution: The 1um (1 micron) resolution of the SINO DRO provides accurate and fine-grained measurements, enabling precise positioning and control of the milling machine.
Intuitive User-Friendly Interface: The DRO system is designed with a user-friendly interface, making it easy to navigate and operate. The intuitive layout and menu options ensure a smooth user experience.
Configurable Settings: The SINO DRO allows for customizable settings to meet specific milling requirements. Users can adjust parameters such as scale type, axis configuration, units of measurement, and display options.
Multiple Axis Support: The DRO system supports multiple axes, typically including the X, Y, and Z axes. It provides simultaneous measurement and display of the positions of these axes, enabling efficient milling operations.
Clear Digital Display: The SINO DRO features a clear digital display that shows the measured positions in real-time. The display is typically mounted near the milling machine's control panel for easy visibility and monitoring.
Incremental and Absolute Measurement Modes: The DRO system supports both incremental and absolute measurement modes, allowing users to choose the most suitable mode for their milling applications.
Usage:
The 1um SINO DRO is specifically designed for milling machines and is used to enhance precision, measurement, and control during milling operations. It provides real-time feedback on the position of the milling machine axes, allowing operators to achieve accurate results.
Specifications of SINO SDS2-3VA digital readout system + linear scale encoder
A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS2-3VA.
This three-axis type supports the connection of up to three linear encoders. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.
strong die cast casing with a front panel membrane that is both haptic and long-lasting.
large, easily readable LCD screen.
PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.

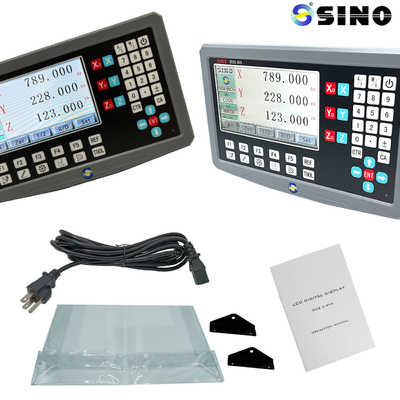

1 PC | 3 Axis LED digital readout SDS2-3Va |
1 PC | Protection cover |
1 PC | Instruction Manual (English) |
1 PC | Cable |

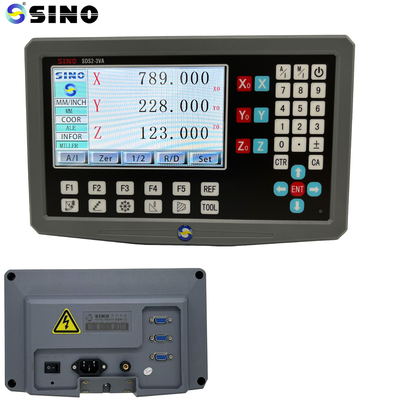

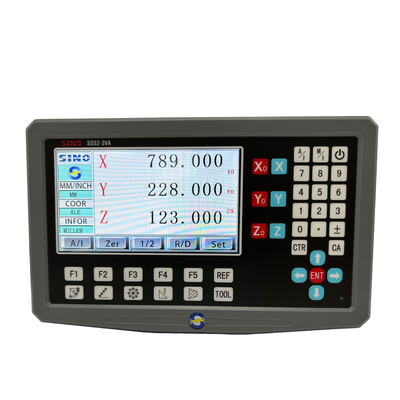

Product image /photos:
The rack in the picture is optioned, not standard product.
