A brief introduction to SINO SDS2-3VA 3-axis DRO digital readout system:

These features facilitate the use of the graphics function. With a 16- and 32-bit calculator, it is the first facility in China to use a DRO system. It also boasts among the highest input frequencies in the whole world, reaching up to 5 MHZ with A/B.
A three-axis digital readout meter that supports the TTL/RS422 signal and works with the KA300 glass linear ruler is the SINO SDS2-3VA. For a variety of uses, this digital readout meter is intended to precisely show and measure the location of machine tool axes. While the TTL/RS422 signal guarantees quick and dependable communication between the ruler and the readout meter, the KA300 glass linear ruler offers accurate and dependable position feedback.

Accurate results for machining operations are produced by the SINO SDS2-3VA digital readout meter, which ensures precise measurement and placement of the machine instrument axes.
Glass Linear Ruler KA300: Because of its exceptional stability and lifespan, this ruler offers trustworthy position feedback in even the most demanding industrial environments.
The digital readout meter's connectivity for both TTL and RS422 signals ensures quick and reliable communication through the KA300 glass linear ruler.
User-Friendly design: The digital readout meter's user-friendly design, which features clear numerical displays, makes it easy to read and comprehend position information.
Versatile Configuration: People can measure and track the location of various machine tool axes simultaneously because the device supports three axes.


SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (applicable to spark testers and milling machines)

Function for machining involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA often includes preset functions that allow the user to store and recall specific measurement values. This feature is particularly useful for repetitive machining tasks where precise measurements need to be repeated.

Error Compensation: The system may offer error compensation features to account for machine tool inaccuracies or measurement errors. By calibrating the system and applying compensation values, it can enhance the overall accuracy of measurements.

Data Interface: Some versions of the SDS2-3VA digital readout system may have data interfaces, such as RS-232 or USB, that allow for data transfer and communication with external devices. This can enable connectivity with computer systems or data logging for quality control purposes.

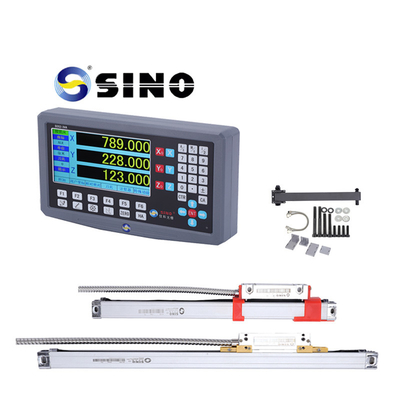

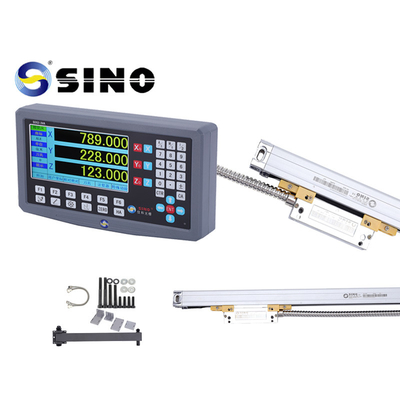

Product image /photos:

The rack in the picture is optioned, not standard product.
