SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing

SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing
SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing

Large Image :  SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS2-3VA, KA200/300/500/600
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30000 pcs per month

SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing

Description
Name: SINO SDS2-3VA 3 Axis DRO Digital Readout System And KA Glass Linear Ruler Number Of Axis: 3 Axis Digital Readout Encoder
Signal: TTL & RS422 Voltage Range: AC100-240V / 50-60Hz
Touch Screen: SDS 200s Warranty Period: 365 Days
Max Of Measuring Speed(m/min): 60 Display: LCD Display
High Light:

SDS2-3VA-Dro High Resolution Digital Readout Display

,

High Resolution Digital Readout Display

SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing





An overview of the SINO SDS2-3VA 3-axis DRO digital readout system is as follows:



These features facilitate the use of the graphics function. With a 16- and 32-bit calculator, it is the first facility in China to use a DRO system. It also boasts among the highest input frequencies in the whole world, reaching up to 5 MHZ with A/B.
A three-axis digital readout meter that supports the TTL/RS422 signal and works with the KA300 glass linear ruler is the SINO SDS2-3VA. For a variety of uses, this digital readout meter is intended to precisely show and measure the location of machine tool axes. While the TTL/RS422 signal guarantees quick and dependable communication between the ruler and the readout meter, the KA300 glass linear ruler offers accurate and dependable position feedback.



It has a 16 bit and 32-bit calculator, making it the first facility in China to use the DRO system. It also has one of the highest input frequencies in the world, reaching 5MHz through A/B. Effectively improving work

SINO SDS2-3VA is a three-axis digital reader that supports TTL/RS422 signals and is used in conjunction with KA300 glass linear rulers. For various purposes

The digital display meter aims to accurately display and measure the position of the machine tool axis. The TTL/RS422 signal ensures fast and reliable communication between the scale and reading table, while the KA300 glass linear scale provides accurate and reliable position feedback.



SDS2-3VA DRO Digital Readout Systems Functions:



PCD circumferential division (applicable to spark testers and milling machines)

Function for machining involute chambers (applicable to milling machines)


Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)



Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)



Function that prevents dithering (applicable to grinding machines)



SINO SDS2-3VA digital readout system specifications plus a glass linear scale



Pre set functions: SDS2-3VA includes pre set functions that allow users to store and call specific measurement values. Reduce repetitive work tasks for operators.

Error compensation: The system can provide error compensation function to solve the problem of inaccurate machine tools or measurement errors. To the greatest extent possible.

Data Interface: Some versions of the SDS2-3VA digital readout system may have a data interface, such as RS-232 or USB, allowing for data transmission and communication with external devices. This can enable connection with computer systems or data recording for quality control purposes.



Packaging List :

1 PC 3 Axis LED digital readout SDS2-3Va
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

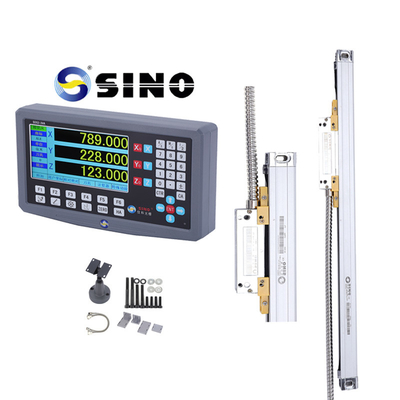

SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing 0

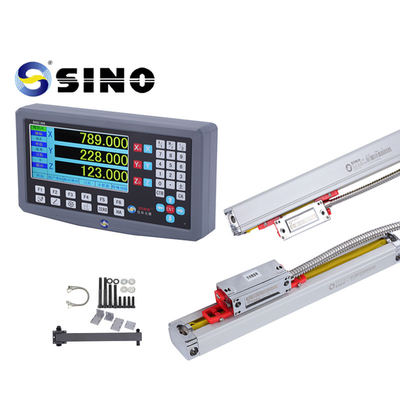

SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing 1

The rack in the picture is optioned, not standard product.



SDS2-3VA-Dro High-Resolution Digital Readout Display And SINO Enclosed Grating Ruler In Various Metal Processing 2
