SINO SDS2-3VA Three-Axis DRO Digital Readout System For Precision Measurement

SINO SDS2-3VA 3 Axis Digital Readout Meter KA300 Glass Linear Ruler TTL/RS422 Signal​

SINO SDS2-3VA 3-axis DRO digital reading system with KA300 glass line ruler, taper measurement, and tool acquisition

These features make graphic functionality easier to use. It is the first factory in China to use 16 bit and 32-bit calculators in the DRO system. The input frequency of the DRO system is as high as 5MHz, with a/B ratio, which is the highest in the world.

SINO SDS2-3VA is a three-axis digital reading meter that is compatible with KA300 glass linear scales and supports TTL/RS422 signals. This digital reading device is designed to accurately display and measure the position of machine tool shafts in various applications. The KA300 glass linear scale provides precise and reliable position feedback, while the TTL/RS422 signal ensures fast and reliable communication between the scale and the reading meter.

Accurate positioning: By ensuring the precise measurement and positioning of the machine tool axis, the SINO SDS2-3VA digital reader provides accurate results for machining operations.

KA300 glass straightedge ruler: Due to its significant stability and lifespan, it can provide reliable position feedback even in the most demanding industrial environments,.

The digital meter is compatible with TTL and RS422 signals, ensuring fast and reliable contact with the KA300 glass linear scale.

User friendly interface: Through the user-friendly interface of the digital reading meter, position information can be easily read and understood, and the interface has clear numerical display.

Multifunctional configuration: The system supports three axes, allowing users to simultaneously measure and track the positions of multiple machine tool axes.

SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (applicable to spark testers and milling machines)

Function for machining involute chambers (applicable to milling machines)

Bevel machining and angular surface processing (milling machine-specific)

N3 function (milling machine-specific)

Using a milling machine, diagonal boring

R-arc function (milling machine-specific)

Function for measuring taper (Lathe only)

200-tool collection (lathe applicable)

Function that prevents dithering (applicable to grinding machines)

SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Functions: The SDS2-3VA often includes preset functions that allow the user to store and recall specific measurement values. This feature is particularly useful for repetitive machining tasks where precise measurements need to be repeated.

Error Compensation: The system may offer error compensation features to account for machine tool inaccuracies or measurement errors. By calibrating the system and applying compensation values, it can enhance the overall accuracy of measurements.

Data Interface: Some versions of the SDS2-3VA digital readout system may have data interfaces, such as RS-232 or USB, that allow for data transfer and communication with external devices. This can enable connectivity with computer systems or data logging for quality control purposes.

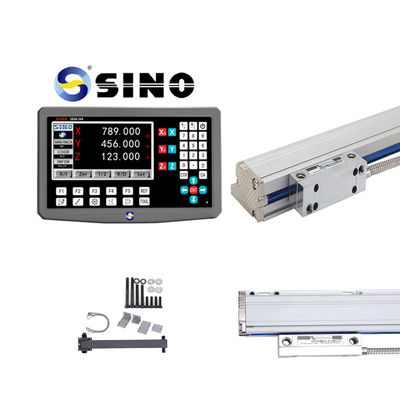

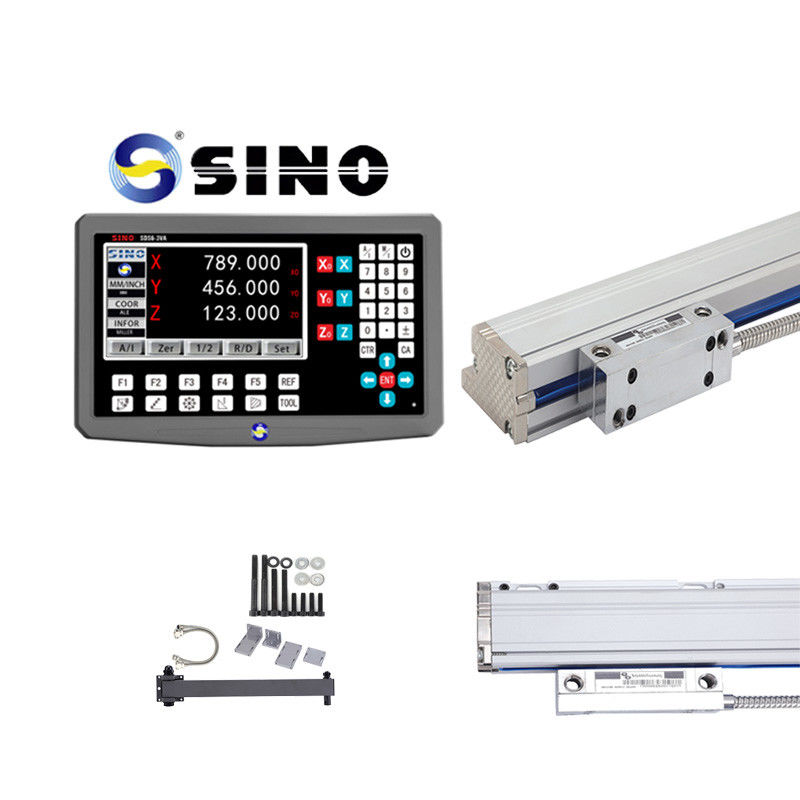

Product image /photos:

The rack in the picture is optioned, not standard product.
